How to Properly Install a Flow Meter
The accuracy and reliability of a flow meter largely depend on its installation quality. Flow meters are often installed in industrial environments with space constraints, vibration, or temperature variations. Proper installation is essential to ensure precise measurement and long service life. Below are key steps and considerations for correctly installing a flow meter.

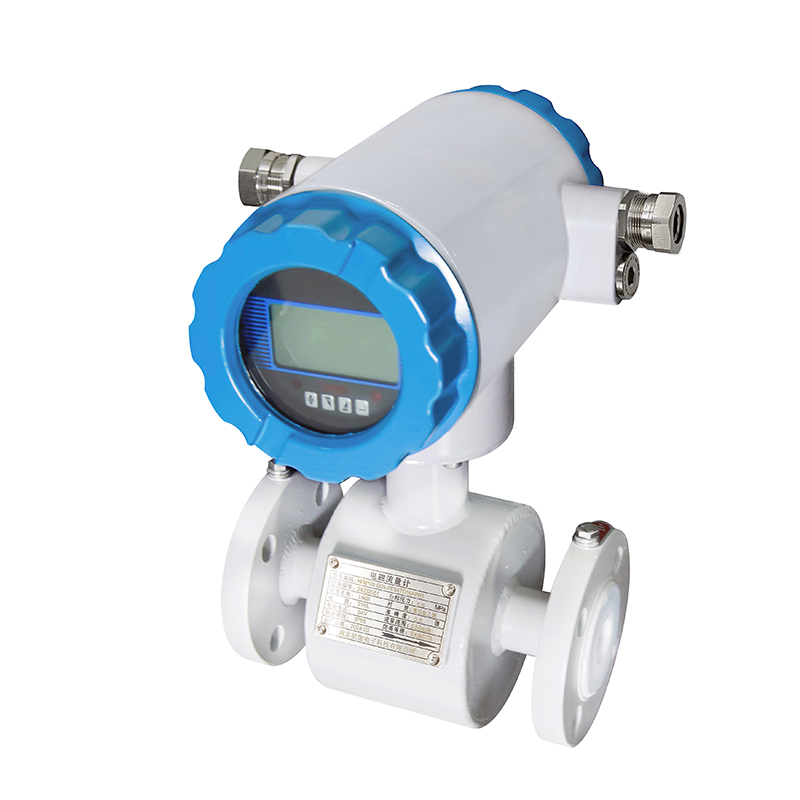

1. Choosing the Installation Location
Selecting the right location is the first step to ensure measurement accuracy. Different types of flow meters (turbine, electromagnetic, vortex, etc.) have specific requirements, but some general principles apply:
Straight Pipe Runs: Most flow meters require straight pipe sections before and after the meter to stabilize flow profile. Typically, at least 5–10 pipe diameters upstream and 3–5 diameters downstream are recommended. Avoid installing close to elbows, valves, or reducers.
Avoid Vibration and Shock: Install the flow meter in a location with minimal vibration. Excessive vibration can cause erratic readings, especially in turbine or vortex meters.
Temperature Control: Keep the meter away from extreme heat sources or rapid temperature fluctuations. Some meters (e.g., ultrasonic) are sensitive to temperature gradients.
Accessibility: Ensure enough space for cleaning, calibration, and maintenance. The display or electronics should be easily readable.

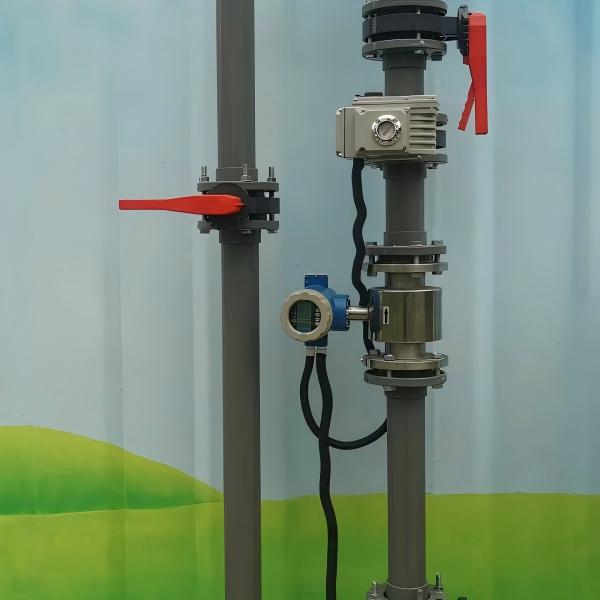

2. Installation Steps
Inspect the Meter and Piping
Before installation, check the flow meter for any shipping damage, especially the sensing elements (e.g., rotor blades, electrodes, or transducer faces). Ensure the pipe inner diameter matches the meter size and that the pipe is clean and free from debris.Confirm Flow Direction
Most flow meters have an arrow indicating the correct flow direction. Install the meter so that the arrow aligns with the actual fluid flow. Reverse installation will cause incorrect readings or damage.Mount the Meter Securely
For flange-type meters: Use gaskets and bolts to fasten the meter between pipe flanges. Tighten bolts evenly to avoid distortion.
For threaded meters: Use pipe sealant or PTFE tape on threads, but be careful not to over-tighten, which may deform the meter body.
Connect Electrical Cables (if applicable)
Follow the wiring diagram provided by the manufacturer. Use shielded cables for pulse or analog outputs, and keep cable runs away from high-voltage lines to avoid electrical interference.Grounding (for electromagnetic flow meters)
Proper grounding is critical for magmeters. Install grounding rings or electrodes as required, and ensure the fluid is conductive.Power On and Check Zero
After installation, fill the pipe with fluid (avoid dry running for turbine meters) and power on the meter. Perform a zero adjustment if necessary. For meters with a display, verify that the reading is stable with no flow.
3. Key Precautions
Avoid Upstream Disturbances
Do not install the flow meter directly after pumps, valves, or pipe bends without sufficient straight pipe. Use flow conditioners if needed.Prevent Air Pockets
For liquid flow meters, install the meter in a location where the pipe is always full. Mount it horizontally or with a slight upward slope to avoid air accumulation.Protect the Sensor
For turbine meters, the rotor is delicate – avoid high-velocity debris. Install a strainer or filter upstream. For ultrasonic meters, keep the transducer faces clean.Respect Pressure and Temperature Ratings
Ensure the maximum operating pressure and temperature do not exceed the meter’s specifications. Excessive pressure may damage the sensor.Professional Installation
Calibration and initial setup should be performed by qualified engineers. Read the product manual thoroughly before installation.
4. Common Issues and Solutions
Problem | Possible Cause | Solution |
|---|---|---|
Fluctuating readings | Vibration near the meter, or insufficient straight pipe | Relocate meter or install anti-vibration pads; increase straight pipe length. |
Zero drift | Incomplete pipe filling or wrong installation orientation | Ensure pipe is full; adjust installation angle. Re-zero after filling. |
Inaccurate total flow | Wrong K‑factor or calibration | Verify and re-enter the correct K‑factor from the calibration certificate. |
No output signal | Wiring error, or sensor damaged | Check electrical connections; test sensor with a multimeter. |
Pressure drop too high | Partially closed valve, undersized meter, or blockage in pipe | Check valve position; use proper meter size; clean pipe. |
5. Conclusion
Proper installation of a flow meter is critical to achieving accurate, reliable measurements and extending equipment life. By selecting the right location, following correct mounting procedures, protecting the sensor, and troubleshooting common issues, you can avoid frequent failures and ensure optimal performance. Always refer to the manufacturer’s manual and, when in doubt, consult an experienced engineer.
