Understanding Flush Mount Pressure Transmitters: The Hygienic Solution for Precise Measurement

In industrial and sanitary applications, Flush Mount Pressure Transmitters have become indispensable. These devices are engineered to provide highly accurate pressure readings while minimizing contamination risks, especially in processes involving viscous, crystallizing, or sticky media. Their flush-mounted design ensures no cavity for material buildup, making them ideal for food, pharmaceutical, and chemical applications.

This article explores the core concept of Flush Mount Pressure Transmitters, including variations like the 4-20mA Flush Mount Pressure Transmitter, Flat Film Sanitary Field Pressure Transmitter, Tri-clamp Pressure Transmitter, and the Flush Diaphragm Hygienic Pressure Transmitter. We'll also answer key FAQs and offer comparison insights to help engineers and procurement specialists make informed decisions.

What is a Flush Mount Pressure Transmitter?

A Flush Mount Pressure Transmitter is a sensor device designed to measure pressure without any cavities or dead zones that could trap the process medium. Unlike traditional threaded transmitters, this type sits flush with the process line or vessel wall, allowing for easy cleaning and sterilization. This feature is crucial in industries with stringent hygiene regulations, such as dairy, brewing, and pharmaceuticals.

The flush diaphragm design eliminates the risk of contamination and ensures a longer operational lifespan. Additionally, the robust construction allows it to withstand aggressive cleaning cycles such as CIP (Clean-in-Place) and SIP (Sterilize-in-Place).

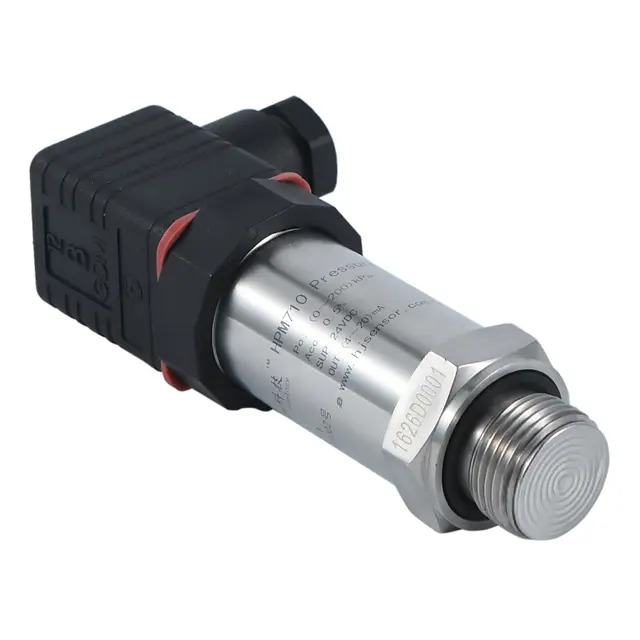

4-20mA Flush Mount Pressure Transmitter: A Standard for Industrial Control

The 4-20mA output signal remains the industry standard for transmitting sensor data across long distances with minimal signal degradation. A 4-20mA Flush Mount Pressure Transmitter combines the hygienic advantages of flush mounting with the reliability of analog current output.

Key Benefits:

• Signal Integrity: Resistant to electromagnetic interference (EMI)

• Universal Compatibility: Supported by most PLCs, SCADA systems, and control panels

• Scalability: Easy integration in existing systems without complex conversion

For environments prone to electrical noise, the 4-20mA output ensures accurate and stable readings. It's often used in food processing lines, brewery fermentation tanks, and water treatment facilities, where real-time monitoring is critical.

Flat Film Sanitary Field Pressure Transmitter: Durability Meets Cleanliness

The Flat Film Sanitary Field Pressure Transmitter represents a refined solution for field-level pressure monitoring in sanitary environments. The “flat film” refers to a thin-film pressure sensing technology integrated directly on the stainless steel diaphragm.

Application Scenarios:

• Yogurt and cream processing (high-viscosity media)

• Pharmaceutical batch reactors

• Fermenters in biotechnological processes

These transmitters are typically constructed using 316L stainless steel with electropolished surfaces to resist corrosion and biofilm formation. They meet sanitary certifications like 3-A, EHEDG, and FDA compliance.

The real strength lies in their adaptability: they can endure temperature fluctuations, steam exposure, and harsh chemicals without drift in accuracy. Maintenance is also simplified since the flush surface allows for thorough cleaning without disassembly.

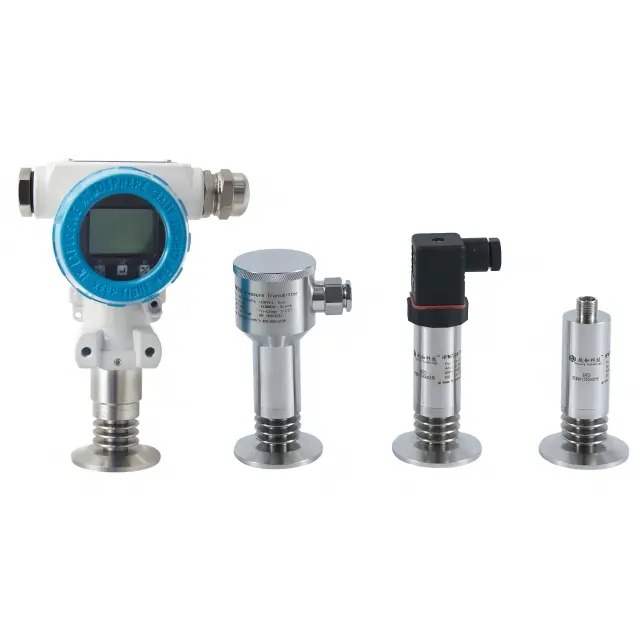

Tri-Clamp Pressure Transmitter: A Game Changer for Easy Installation

A Tri-Clamp Pressure Transmitter uses a hygienic clamp connection to attach seamlessly to piping systems. This standard fitting is widely recognized in the sanitary industry due to its ease of installation, leak-proof sealing, and tool-free maintenance.

Comparison Table: Flush Mount vs. Tri-Clamp

Feature	Flush Mount Transmitter	Tri-Clamp Transmitter
Connection Type	Welded/Threaded	Clamp (Sanitary Fitting)
Installation Ease	Medium	High
Cleaning Access	CIP/SIP Ready	Easy Removal for Cleaning
Typical Applications	Viscous Fluids	Beverages, Dairy, Biotech

If your priority is frequent disassembly for cleaning or calibration, the Tri-Clamp Pressure Transmitter is the ideal choice. It's also excellent for mobile or modular systems, such as those used in pilot-scale fermentation or portable mixing tanks.

Flush Diaphragm Hygienic Pressure Transmitter: Designed for Precision and Purity

The Flush Diaphragm Hygienic Pressure Transmitter excels in sterile environments where even minute contamination can be critical. These transmitters feature a diaphragm level with the process connection, preventing microbial growth or media accumulation.

This type is commonly used in:

• Aseptic filling lines

• Blood plasma processing

• Cosmetic cream production

Its diaphragm is usually isolated with FDA-approved fill fluids, such as silicone oil or glycerin, and is welded seamlessly into a hygienic housing. It is suitable for low-pressure ranges and can handle foaming or aerated media with high accuracy.

They are often calibrated with digital communication protocols (e.g., HART, Modbus) for smart diagnostics and parameter configuration, making them indispensable in Industry 4.0 setups.

4-20mA / 0-10V Digital Flush Diaphragm Pressure Sensor: Dual Signal Flexibility

A hybrid unit like the 4-20mA 0-10V Digital Flush Diaphragm Pressure Sensor offers dual output capabilities. This combination provides flexibility during integration—4-20mA for long-distance analog transmission and 0-10V for high-resolution local control.

Why Choose a Dual-Signal Sensor?

• Redundancy: Backup signal path in case of failure

• Versatility: Compatible with diverse data acquisition systems

• Ease of Transition: Perfect for facilities migrating from analog to digital systems

This sensor is ideal for system integrators and OEMs developing customized control solutions for tank level measurement, chemical dosing, or pressure feedback loops. Digital flush diaphragm sensors also often feature local display units, real-time error diagnostics, and password-protected access.

FAQs About Flush Mount Pressure Transmitters

Q1: How do I select the right flush mount pressure transmitter?

Consider the following:

• Media type: Viscosity, corrosiveness, particulate content

• Process conditions: Pressure range, temperature, cleaning frequency

• Connection type: Weld-in, Tri-Clamp, thread

• Output signal: Analog (4-20mA), Voltage (0-10V), Digital (HART, Modbus)

Q2: Can these transmitters be used for level measurement?

Yes. In tanks and vessels, especially where foaming or agitation is present, flush mount transmitters can be mounted at the base to provide accurate hydrostatic level measurement.

Q3: What is the lifespan of a flush diaphragm pressure sensor?

With proper maintenance and within rated specifications, most sensors last 5-10 years. Diaphragm damage is the most common failure, often caused by improper cleaning or overpressure spikes.

Q4: Are these transmitters suitable for CIP/SIP?

Absolutely. Sanitary models are designed for high-pressure and high-temperature cleaning cycles. Always check product specifications for CIP/SIP compatibility, including temperature and pressure limits.

Conclusion

From food processing to pharmaceutical production, Flush Mount Pressure Transmitters deliver accurate, reliable, and sanitary pressure measurement solutions. Whether it's the 4-20mA Flush Mount model for long-distance analog signaling, the Tri-Clamp version for easy disassembly, or the Flush Diaphragm Hygienic Transmitter for aseptic conditions, these devices are vital for maintaining process integrity.

Choosing the right transmitter depends on your specific application needs—media type, hygiene requirements, output signal, and mounting configuration. With the industry’s push toward automation and cleanliness, these flush-mount sensors are no longer optional—they’re essential.
