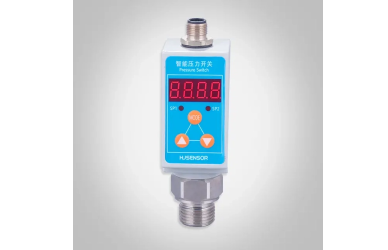

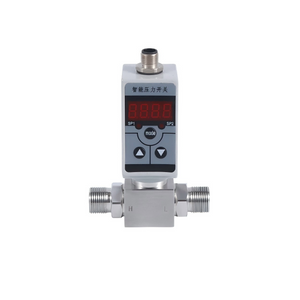

How To Identify A Faulty Electronic Pressure Switch

1.Importance of Monitoring Your Electronic Pressure Switch

An Electronic Pressure Switch is an essential device in modern industrial and commercial systems. By converting mechanical pressure into an electrical signal, it allows precise monitoring, automated control, and protection of equipment in industries such as hydraulics, pneumatics, HVAC, water treatment, and oil & gas. Despite their reliability, electronic pressure switches can fail over time due to wear, environmental factors, or improper installation.

Identifying a malfunctioning pressure switch early is critical. A bad electronic pressure switch can lead to inaccurate pressure readings, equipment damage, unplanned downtime, and even safety hazards. For industrial managers, maintenance personnel, and engineers, knowing the signs of a failing switch and understanding proper troubleshooting techniques can save time, reduce costs, and prevent potential accidents.



2. Common Signs of a Bad Electronic Pressure Switch

Recognizing the symptoms of a failing Electronic Pressure Switch is crucial for maintaining system performance, safety, and reliability. Early detection can prevent costly downtime, equipment damage, and potential hazards. Key signs include:

1. System Malfunctions

Equipment may fail to start or stop as expected.

Pumps, compressors, or valves may operate inconsistently due to inaccurate pressure detection.

These malfunctions can disrupt automated processes and reduce overall operational efficiency.

2. Inaccurate Pressure Readings

The switch may display frequent fluctuations or extreme readings that do not match actual system conditions.

Unstable readings can mislead control systems, leading to improper adjustments and inefficient operation.

Persistent inaccuracies indicate potential sensor or circuitry issues.

3. Abnormal Alarms or Signals

Warning lights or alarms may trigger unexpectedly or fail to activate when required.

Continuous or false alarms often point to internal circuitry or signal processing malfunctions.

Operators should not ignore recurring alarm anomalies, as they may indicate underlying switch failure.

4. Delayed or No Response

The switch may fail to react promptly to changes in pressure.

Delayed response can compromise system safety, causing overpressure or underpressure conditions.

Lack of timely action may damage equipment or lead to process interruptions.

5. Physical Signs of Damage

Visible wear, cracks, burnt areas, or unusual odors (e.g., burnt smell) on the switch housing.

Corroded terminals, loose wiring, or moisture ingress can prevent proper operation.

Physical damage often indicates the switch has reached the end of its reliable lifespan.

Identifying these signs early allows operators to take timely corrective actions, such as testing, recalibration, or replacement, ensuring continuous, safe, and efficient operation of industrial systems. Proactive monitoring is essential for preventing unexpected failures and maintaining long-term system reliability.



3.Causes of Electronic Pressure Switch Failure

Understanding the root causes of failure helps in both troubleshooting and preventive maintenance. Common reasons for a bad Electronic Pressure Switch include:

• Electrical Issues

  Short circuits, broken wires, or loose connections can prevent the switch from sending or receiving accurate signals.

  Power surges or voltage spikes may damage sensitive electronic components.

• Mechanical Wear or Sensor Damage

  Over time, internal components such as diaphragms or piezoelectric sensors may wear out.

  Mechanical fatigue can lead to reduced sensitivity or complete failure.

• Environmental Factors

  Extreme temperatures, humidity, or corrosive substances can degrade the switch materials.

  Exposure to water, dust, or chemicals may cause sensor malfunction or short circuits.

• Pressure Extremes

Frequent overpressure or sudden pressure spikes can exceed the switch’s rated capacity.

Repeated stress can damage the sensor or cause calibration drift, leading to inaccurate readings.

By understanding these causes, engineers can better design systems, select durable switches, and implement preventive maintenance strategies.



4.Testing and Troubleshooting Methods

When a potential issue is detected, systematic testing and troubleshooting are essential to confirm whether the Electronic Pressure Switch is faulty.

4.1 Visual Inspection

Examine the switch for physical damage, corrosion, or loose wiring.

Check for burnt areas, water ingress, or unusual odors that indicate electrical failure.

Inspect connectors, terminals, and mounting points to ensure secure installation.

4.2 Continuity Test

Use a multimeter to measure the switch’s electrical continuity.

For a normally open (NO) switch, continuity should appear when the pressure exceeds the setpoint.

For a normally closed (NC) switch, continuity should disappear when the pressure reaches the setpoint.

4.3 Pressure Simulation

Apply controlled pressure to the switch using a calibrated pressure source.

Observe the switch response and compare it with the expected setpoint.

A delayed or no response indicates a potential failure in the sensor or circuitry.

4.4 Signal Verification

Measure the analog or digital output signal of the switch.

Compare the output against manufacturer specifications.

Fluctuating or inconsistent signals suggest internal electronic faults.

4.5 Integration Testing

If the switch is part of a PLC, SCADA, or IoT system, verify that the system receives correct readings and triggers appropriate control actions.

Monitor data over time to detect intermittent issues that may not appear in a single test.

These testing methods help determine whether the switch can be repaired, recalibrated, or requires replacement.



5.Preventive Measures to Extend Lifespan

Preventive maintenance is the most effective way to avoid failures in Electronic Pressure Switches. Key measures include:

• Correct Installation

      Follow manufacturer instructions regarding orientation, torque, and environmental conditions.

      Ensure proper sealing and mounting to avoid leaks and vibration damage.

• Environmental Protection

      Avoid exposure to extreme temperatures, humidity, and corrosive substances.

      Use protective enclosures or IP-rated housings where necessary.

• Pressure Management

      Prevent frequent overpressure conditions.

      Use pressure regulators and relief valves to keep pressures within safe ranges.

• Regular Calibration and Inspection

      Calibrate switches periodically to maintain accuracy.

      Inspect wiring, connectors, and housing for wear and corrosion.

• Quality Selection

      Choose high-quality electronic pressure switches designed for the specific industrial environment.

      Consider factors like IP rating, temperature range, and vibration resistance.

These preventive strategies can significantly extend the lifespan of the switch, reduce downtime, and maintain reliable system operation.



6.When to Replace an Electronic Pressure Switch

Even with proper maintenance, there are times when replacement is necessary. Consider replacing a switch if:

• Frequent Failures

  The switch repeatedly malfunctions despite repairs.

• Calibration Issues

  Calibration does not restore accurate readings or the switch cannot maintain setpoints.

• Physical Damage or Wear

  Corrosion, cracks, or sensor wear compromises the integrity of the device.

• High Maintenance Costs

  Repairing the switch becomes more expensive than replacement.

• Safety Concerns

The switch is critical for safety, and any unreliability could lead to hazards.

Replacing an electronic pressure switch at the right time ensures continued operational efficiency and protects both equipment and personnel.



7.Conclusion

Identifying a malfunctioning Electronic Pressure Switch is essential for maintaining system reliability, safety, and efficiency. Signs of a failing switch can include inaccurate readings, delayed responses, abnormal alarms, and physical damage. Common causes range from electrical issues and mechanical wear to environmental stress and pressure extremes.

By performing systematic checks—such as visual inspections, continuity tests, pressure simulations, and signal verification—operators can determine whether a switch is faulty. Implementing preventive measures, including proper installation, regular calibration, environmental protection, and choosing high-quality devices, helps extend switch lifespan and minimize unplanned downtime.
