In the complex ecosystem of industrial process control, few measurements are as versatile—and as unforgiving—as Differential Pressure (DP). From monitoring filter health to calculating flow rates in custody transfer applications, the DP transmitter is often the unsung hero of plant efficiency.

However, standard transmitters often struggle when faced with extreme temperature swings, corrosive media, or the need for ultra-high precision. This is where specialized engineering makes the difference between a shutdown and a streamlined operation.

Why Differential Pressure Matters

Differential pressure measurement is the backbone of several critical industrial applications:

Flow Measurement: Utilizing orifice plates, venturi tubes, or flow nozzles.

Level Measurement: Calculating liquid height in pressurized tanks.

Filter Monitoring: Detecting clogging in HVAC or hydraulic systems.

The Challenge: In these scenarios, the transmitter isn't just measuring pressure; it is measuring the difference between two points, often in the presence of high static pressure. Standard sensors can suffer from "common mode errors," where high line pressure skews the differential reading.

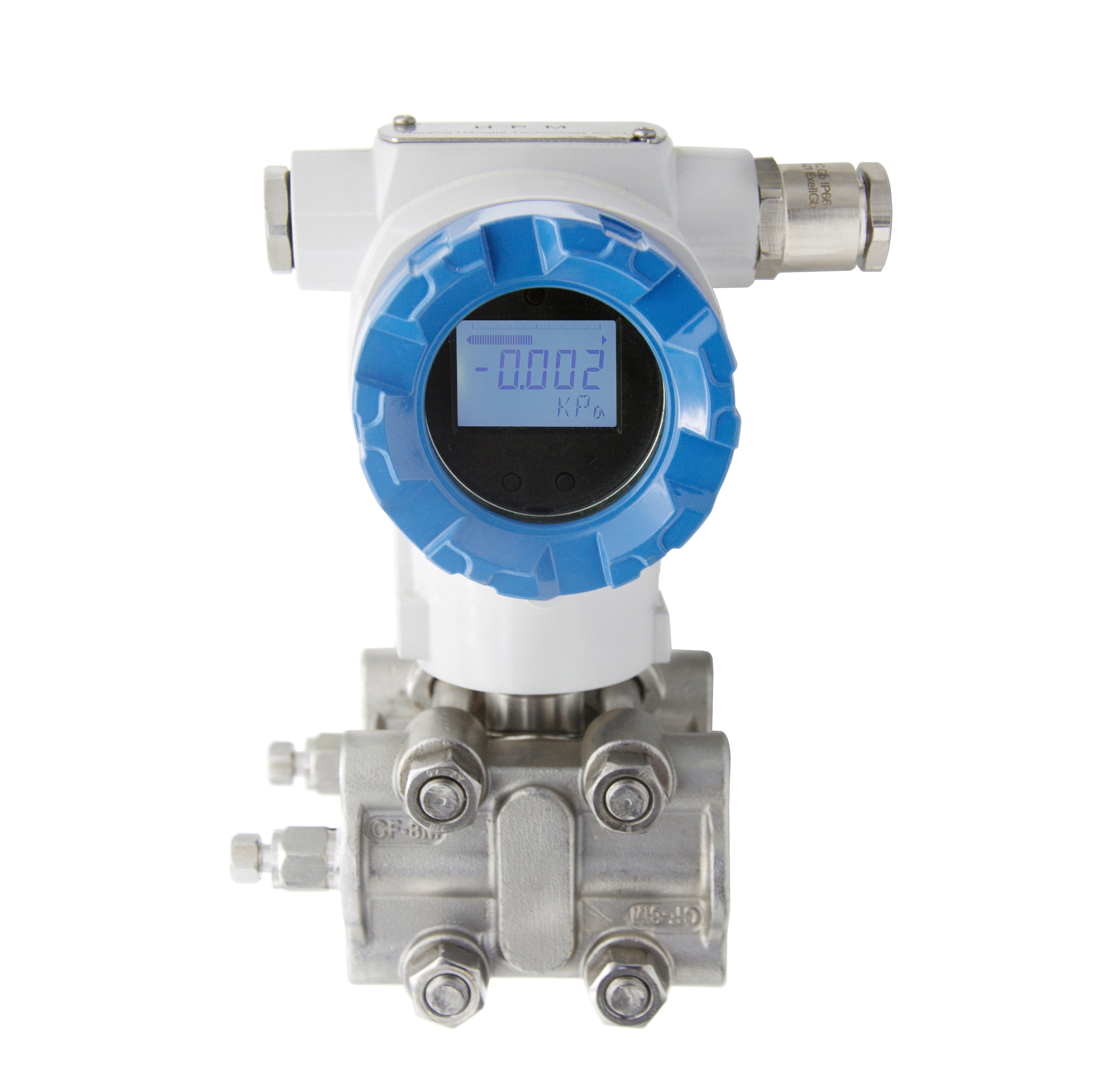

Introducing the HPM81 Monosilicon Differential Pressure Transmitter

To address the demand for resilience and precision, we are proud to highlight our flagship solution: the HPM81 Monosilicon Differential Pressure Transmitter.

Designed for heavy-duty industries like Oil & Gas, Chemical Processing, and Power Generation, this unit redefines reliability.

Key Features & Benefits:

Advanced Sensor Technology: The monocrystalline silicon sensor chip made of MEMS technology and embedded professional signal processing module realize the combination of static pressure and temperature compensation processing, which can provide high measurement accuracy and long-term stability under a wide range of static pressure and temperature changes.

Accuracy: Achieves a total accuracy of ±0.075%, ensuring your flow calculations remain precise even at low flow rates.

Smart Communication: Fully compatible with HART, Profibus PA, or Modbus protocols for seamless integration into your DCS or PLC systems.

Technical Specifications at a Glance

Solving Real-World Problems: The "Custody Transfer" Scenario

Consider a scenario in a petrochemical plant where a standard transmitter was failing to provide consistent flow data due to vibration and temperature cycling. The result? Financial loss during custody transfer and potential safety risks.

By upgrading to the HPM81, the plant engineers utilized its vibration-resistant housing and temperature compensation technology (-40°C to 85°C). The result was a stabilized signal, reducing measurement uncertainty by 40% and eliminating the need for monthly recalibration.

Customization for Your Process

We know that off-the-shelf isn't always enough. As an independent manufacturer, we offer:

Custom Wetted Parts: If you are handling sulfuric acid or seawater, we can customize the diaphragm material .

OEM Branding: We support white-labeling for system integrators.

Application Engineering: Not sure about the range? Our team helps you calculate the exact Span and Zero elevation required for your tank geometry.

Optimize your process control today.

Don't let poor measurement compromise your safety or efficiency. Contact us for a quote on the HPM81 Differential Pressure Transmitter or browse our full catalog of industrial instrumentation.
