Pressure Gauge Testing Methods For Quality Assurance

Introduction

Can you trust every pressure gauge reading in your industrial system? Even small measurement errors can affect equipment performance and safety. Pressure gauge testing verifies accuracy, reliability, and structural integrity. This guide explores key testing methods, calibration procedures, and quality standards. You'll also learn how to evaluate manufacturers before ordering.

What Does Pressure Gauge Testing Verify?

Pressure gauge testing checks several important performance characteristics. It verifies measurement accuracy and reading consistency. It also evaluates pressure resistance and mechanical condition. Digital instruments require additional electronic function checks. These inspections help manufacturers identify defects before shipment. They also help buyers assess product quality.

Measurement Accuracy and Reading Consistency

Measurement accuracy is one of the most important quality indicators. A pressure gauge must display values close to actual pressure. Testing compares its readings against a reference instrument. The difference between these values indicates measurement deviation. Repeatability checks whether the gauge produces consistent readings under repeated conditions. Both characteristics affect industrial measurement reliability.

For example, a gauge may display slightly different readings during repeated tests. This difference may result from mechanical friction or sensor instability. Testing helps identify these problems before delivery. Accuracy classes also provide a basis for product evaluation. However, buyers must check the specified reference conditions. A higher display resolution does not automatically mean better accuracy.

Pressure Resistance and Structural Integrity

Pressure resistance testing evaluates the instrument's ability to withstand specified pressure conditions. It focuses on the sensing element and pressure boundary. These components must tolerate their intended operating conditions. Inspectors also check connections, seals, and housing structures. Visible deformation or leakage may indicate potential defects.

Rated pressure and permissible overload are different specifications. Rated pressure describes the intended measurement range. Overpressure limits describe specified exposure beyond normal conditions. Testing must follow the manufacturer's approved procedures. Excessive pressure can permanently damage sensitive components. It may also create safety risks during inspection.

Mechanical Movement and Display Performance

Mechanical pressure gauges require smooth pointer movement. Inspectors observe the pointer during increasing pressure. They also check its return after pressure release. The pointer should move without sticking or irregular jumps. Zero-point return is another important inspection item.

The dial and pointer must remain easy to read. Inspectors check alignment and scale markings. They also look for loose components and damaged windows. Mechanical friction can affect measurement consistency. These checks help identify assembly defects before shipment.

Digital Sensor and Electronic Function Verification

Digital pressure gauges require electronic verification. Their sensors must respond correctly to applied pressure. Testing compares displayed readings against reference values. Inspectors also check the display and power supply. Other functions may include unit switching and zero adjustment.

Some models provide alarms or electrical outputs. These functions require separate verification. Signal stability should also be checked when applicable. Battery-powered instruments need power and battery checks. The exact test items depend on product specifications.

What Are the Main Pressure Gauge Testing Methods?

Pressure gauge testing combines several procedures. Each method checks a different quality characteristic. Calibration verifies measurement accuracy. Repeatability testing checks reading consistency. Leak inspection evaluates pressure boundaries. Pressure cycling examines performance under repeated changes. Together, these procedures provide a more complete quality assessment.

Pressure Gauge Calibration Testing

A pressure gauge calibration procedure compares the instrument against a reference standard. The reference equipment must have suitable accuracy. Technicians connect both instruments to a controlled pressure source. They then apply pressure at selected points. Readings from the test gauge are compared against reference values.

Testing should cover relevant parts of the measurement range. Technicians may increase pressure in controlled steps. They record each reference value and indicated reading. Some procedures also include decreasing pressure. This helps reveal differences between loading directions.

Calibration results show measurement deviations. They can also indicate whether adjustment is necessary. After adjustment, the gauge should undergo verification again. A calibration record should identify the instrument and test conditions. It should also state the reference equipment and results.

Pressure Gauge Accuracy and Error Testing

Pressure gauge accuracy testing evaluates measurement deviation. It compares indicated pressure against reference pressure.

Measurement Error = Indicated Pressure − Reference Pressure

For example, a reference instrument shows 5.00 bar. The test gauge indicates 5.08 bar. Therefore, its measurement error is +0.08 bar.

Percentage-of-full-scale error uses another calculation:

Error Percentage = (Absolute Error ÷ Full Scale) × 100%

This method expresses error relative to the instrument's full scale. Buyers should distinguish it from percentage of reading. Manufacturers may specify accuracy using different reference bases. Always check the product datasheet and applicable testing standards.

Testing several pressure points provides a clearer result. It helps identify errors across the measurement range. A single-point check cannot establish full-range performance. The acceptance limit must follow the product specification.

Pressure Gauge Repeatability and Hysteresis Testing

Repeatability testing checks whether readings remain consistent. Technicians apply the same pressure repeatedly. They record the indicated values during each cycle. Large differences may suggest unstable sensing or mechanical movement.

Hysteresis testing compares readings during increasing and decreasing pressure. The same reference pressure may produce different indications. Mechanical friction can contribute to this difference. Sensing element behavior may also influence the result.

These tests are useful for mechanical and electronic instruments. However, their procedures may differ. Buyers should request test methods and acceptance limits. This makes supplier comparisons more meaningful.

Pressure Gauge Leak Testing

Leak testing checks the instrument's pressure boundary. Inspectors examine connections, seals, and joints. They apply the specified test medium and pressure. The inspection method depends on product design. Suitable procedures may include pressure decay or approved leak detection methods.

A pressure drop does not always prove leakage. Temperature changes can also affect pressure readings. Test conditions must therefore remain controlled. Inspectors should follow the applicable procedure. They should record any leakage findings.

For liquid-filled gauges, case sealing also matters. The filling fluid should remain contained. Damaged windows or seals require attention. A proper inspection checks both process boundaries and case integrity.

Pressure Cycling and Overpressure Testing

Pressure cycling exposes an instrument to repeated pressure changes. It helps evaluate performance under repeated loading. Inspectors monitor changes in readings and mechanical behavior. They may check zero return after selected cycles. The procedure should follow the product design and test requirements.

Overpressure testing serves a different purpose. It evaluates performance under specified pressure exposure beyond normal measurement conditions. It is not the same as routine calibration. Excessive or uncontrolled pressure can damage the gauge. Testing must use approved limits and suitable protective equipment.

Tip： Never apply arbitrary overload pressure during inspection. Follow the manufacturer's specified test limits.

Pointer, Zero-Return, and Display Function Testing

Mechanical gauges require pointer inspection. Technicians check movement across the dial. They observe sticking, vibration, and alignment. After pressure release, they check zero return. The dial markings must also remain clear.

Digital gauges require display verification. Technicians check numerical readings and screen stability. They test available functions such as unit switching. Zero adjustment and alarms may also require inspection. Battery-powered models need suitable power checks.

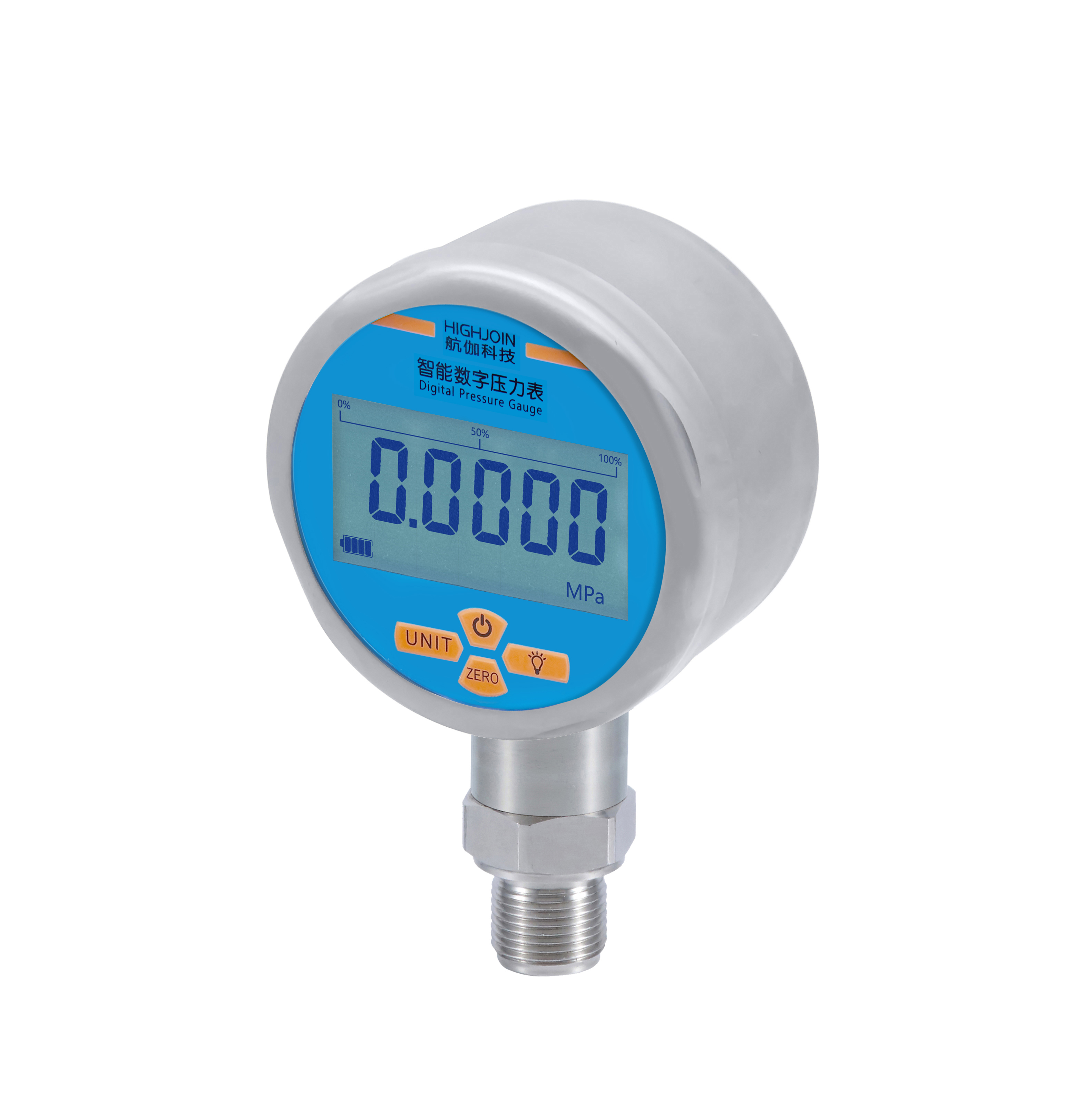

For example, HJ Sensor's HP-S260 Intelligent Digital Pressure Gauge lists LCD display options and unit switching. Its published specifications include a 1.0% standard accuracy. These features provide clear items for functional verification. They do not replace calibration against a reference instrument.

Visual Inspection and Final Quality Verification

Visual inspection checks the instrument's external condition. Inspectors examine the case, window, dial, and connection. They look for corrosion, scratches, and deformation. They also check labels and product identification.

Final quality verification combines inspection results. It confirms whether the product meets acceptance requirements. Records may include calibration results and functional checks. Some orders also require material or pressure test documents. The required records depend on buyer specifications.

Tip： Define acceptance criteria before production begins. This helps prevent disputes during final inspection.

How Do Testing Methods Differ Between Mechanical and Digital Pressure Gauges?

Testing Bourdon Tube and Liquid-Filled Pressure Gauges

Bourdon tube gauges require mechanical performance checks. Technicians apply controlled pressure to the sensing tube. They observe pointer movement and reading consistency. They also check zero return after pressure release. Calibration verifies the indicated pressure against a reference.

Liquid-filled models require additional visual inspection. Technicians examine the case and sealing condition. They check for leakage or abnormal fluid loss. Pointer movement should remain clear under normal test conditions. Filling fluid helps dampen vibration during operation. It does not replace accuracy testing.

A product example is the 63mm stainless steel glycerine-filled gauge listed by Gongchuang. Its product page identifies pointer indication and a stated accuracy of 1.6. It also lists radial connection and industrial applications. These details illustrate configuration items buyers should include in inspection plans. They do not establish a universal testing requirement.

Testing Battery-Powered Digital Pressure Gauges

Digital gauges require sensor and electronic verification. Technicians apply known pressure values. They compare the displayed readings with reference values. They also inspect screen stability and response. Power supply and battery condition require attention.

Some digital models provide additional functions. These may include unit switching and alarm outputs. Each available function should be tested separately. Communication or relay outputs also need verification when specified. The test report should identify the tested functions.

The Hongqi HC-100 product listing describes a battery-powered digital gauge. It lists selectable accuracy grades and pressure units. Its optional relay output provides another function to verify. These specifications are product-specific examples. They should not be treated as universal digital gauge requirements.

Comparing Mechanical and Digital Gauge Quality Checks

Both gauge types require accuracy verification. They also need suitable pressure resistance checks. However, their additional inspection items differ. Mechanical gauges require pointer and movement checks. Digital gauges require sensor and electronic function checks.

The testing plan should match the instrument design. A common checklist can cover shared requirements. Additional checks should address model-specific functions.

Which Standards and Equipment Are Used for Pressure Gauge Testing?

Reliable testing requires suitable reference equipment and defined procedures. Manufacturers use pressure calibrators, controllers, and reference gauges. Applicable standards also help establish technical requirements. Buyers should confirm which standards apply to their products and markets.

Reference Pressure Calibrators and Pressure Controllers

A pressure calibrator provides a reference for measurement verification. It generates or measures known pressure values. Technicians compare the test gauge against this reference. The equipment must have suitable accuracy and calibration status.

Pressure controllers help apply stable pressure during testing. They can provide controlled pressure increases and decreases. Reference gauges offer another measurement comparison method. Their specifications must suit the test range.

Traceability is also important. Reference instruments should have valid calibration records. These records help establish measurement confidence. They also support consistent inspection procedures.

Common Pressure Gauge Testing Standards

EN 837 and ASME B40.100 are relevant references for pressure gauges. They address technical requirements for different instrument categories. Their scope and requirements are not identical. Manufacturers should identify the applicable standard before testing.

Buyers should confirm the required standard and edition. They should also check the product's intended application. Some markets require additional compliance documents. Special industrial environments may have further requirements.

A quality certificate does not replace product testing. Buyers should request relevant test records. They should also verify whether documents cover the supplied model. This helps prevent confusion between factory certification and product conformity.

Environmental and Operating Condition Tests

Pressure gauge performance can change under environmental conditions. Temperature affects sensing elements and internal components. Vibration may influence mechanical movement. Moisture can also affect unsuitable housings.

Environmental tests should reflect the intended application. Manufacturers may evaluate temperature resistance where required. Vibration testing may apply to machinery installations. Protection checks may also be necessary for outdoor equipment.

For example, a liquid-filled pressure gauge may suit vibrating equipment. A digital model may require battery testing. Each instrument needs an appropriate test plan. Buyers should confirm the specified environmental limits.

How Do Manufacturers Maintain Pressure Gauge Quality Assurance?

Quality assurance begins before final assembly. Manufacturers inspect incoming components and materials. They then control assembly and functional testing. Final verification confirms product conformity. This process helps reduce defects and improve consistency.

Incoming Material and Component Inspection

Incoming inspection checks important components before production. These may include sensing elements and pressure connections. Inspectors also examine cases and electronic parts. They verify dimensions and material specifications where required.

Material compatibility is particularly important. Wetted components must suit the measured medium. Incorrect materials may cause corrosion or premature failure. Buyers should confirm the actual material grade. They should also review supplier documentation where necessary.

In-Process Assembly and Functional Testing

Manufacturing quality depends on controlled assembly. Mechanical gauges require correct sensing element installation. Pointer alignment and movement also need attention. Digital gauges require suitable sensor and circuit assembly. Their displays and electrical connections must function correctly.

In-process checks help identify defects early. Technicians can inspect components before final assembly. They can also verify movement and electronic responses. This reduces the risk of passing defects forward.

Final Inspection and Calibration Records

Final inspection confirms product condition and performance. Manufacturers may check measurement accuracy and zero return. They may also inspect pressure connections and display functions. The required tests depend on the product specification.

Calibration records provide useful evidence. They should identify the tested instrument and reference equipment. Results should include relevant measurement points. Acceptance criteria should also be clear.

Not every product automatically includes an individual calibration certificate. Buyers should specify documentation requirements before ordering. They can request sample reports for review. This helps ensure records match procurement expectations.

Defect Identification and Corrective Actions

Common defects include pointer sticking and zero deviation. Digital instruments may show unstable readings. Pressure connections may also develop leakage. Visual inspection can reveal damaged cases or windows.

Manufacturers should investigate the cause of each defect. Possible causes include assembly errors or component damage. Incorrect adjustment may also affect readings. Corrective action should address the identified cause.

After repair, the instrument needs suitable retesting. This confirms whether the problem has been resolved. Inspection records should document the result. A consistent corrective process supports product quality.

Tip： Ask manufacturers about their incoming, in-process, and final inspection procedures. This reveals more than a general quality claim.

How Can Buyers Evaluate Pressure Gauge Testing Quality Before Ordering?

Buyers should evaluate both product specifications and inspection capability. A manufacturer's quality claims need supporting evidence. Technical documents help confirm product requirements. Testing records also improve purchasing transparency.

Key Test Results and Documents to Request

Before ordering, prepare a clear documentation checklist. Request the product datasheet and accuracy specification. Ask about calibration procedures and reference equipment. Confirm whether individual calibration records are available.

Depending on the application, buyers may also request:

• Calibration results and measurement deviations.

• Pressure resistance test records.

• Leakage inspection results.

• Material and connection specifications.

• Applicable compliance documents.

• Product identification and traceability records.

Not every document applies to every gauge. The required package depends on product design. Buyers should define these requirements before production. This helps avoid incomplete delivery documentation.

How to Evaluate Different Manufacturers

Compare manufacturers using consistent technical requirements. Review their testing equipment and inspection procedures. Ask how they verify measurement accuracy. Confirm whether their reference instruments have valid calibration records.

Product consistency is another important factor. Buyers can request sample inspection reports. They can also discuss batch testing arrangements. For larger orders, pre-shipment inspection may provide additional assurance.

HJ Sensor offers several pressure measurement products. Its Pressure Gauge Product Range includes digital and mechanical configurations. Buyers can compare available specifications before requesting technical details.

For specialized measurement requirements, the HP2000 Differential Pressure Gauge provides another product example. Its published accuracy varies by measurement range. Buyers should verify the applicable specification and testing requirements.

Common Mistakes When Evaluating Pressure Gauge Quality

Some purchasing mistakes result from incomplete comparisons. Buyers may focus only on stated accuracy. However, accuracy values need clear reference conditions. Measurement range also affects interpretation.

Other common mistakes include:

• Confusing display resolution with accuracy.

• Assuming every product includes individual calibration records.

• Treating overload tests as calibration tests.

• Ignoring connection and sealing inspection.

• Comparing products using different accuracy definitions.

• Accepting certificates without checking their scope.

A clear technical specification reduces these risks. It should identify pressure range and accuracy requirements. It should also define materials and connections. Buyers can then compare suppliers more objectively.

Conclusion

Pressure gauge testing verifies accuracy, reliability, and structural integrity. Calibration and inspection help identify potential defects. They also support consistent industrial performance.

HJ Sensor offers digital and differential pressure gauges. Its products provide clear readings and reliable pressure monitoring. The company supports buyers with suitable measurement solutions.

FAQ

Q: What is pressure gauge calibration testing?

A: It compares readings against a calibrated reference instrument.

Q: How often should pressure gauges be tested?

A: Follow manufacturer recommendations and applicable calibration requirements.

Q: What does pressure gauge accuracy testing verify?

A: It identifies measurement errors across selected pressure points.

Q: Why is pressure gauge leak testing important?

A: It identifies leakage around connections, seals, and pressure boundaries.

Q: How are digital pressure gauges tested?

A: Technicians verify sensor accuracy, display functions, and power supply.
