Pressure Gauge Definition And Working Principles Explained

Introduction

How does a pressure gauge measure invisible pressure and turn it into readable values? Understanding its working principles helps ensure accurate industrial pressure monitoring. In this guide, you'll learn about pressure gauge definitions, internal components, measurement mechanisms, and industrial applications.

What Is a Pressure Gauge and What Does It Measure?

Pressure Gauge Definition and Basic Function

A pressure gauge is an instrument that measures and displays the pressure of a gas, liquid, or steam. It converts pressure acting on a sensing element into a readable indication. Depending on its design, the result appears on an analog dial or digital screen. Industrial operators use these readings to monitor system conditions and identify abnormal pressure changes.

The basic function is straightforward. A pressure gauge connects to a pressurized system through a suitable process connection. The medium applies force to an internal sensing element. That element responds to the applied pressure. A mechanical mechanism or electronic circuit then converts the response into a pressure reading.

Pressure gauges are commonly installed on compressors, hydraulic equipment, boilers, water pipelines, and storage vessels. They help operators check whether equipment remains within its intended operating range. For example, a sudden pressure increase may indicate a blocked pipeline or closed valve. A gradual pressure decrease may suggest leakage or reduced pump performance. However, a gauge only provides measurement information. It does not automatically correct abnormal operating conditions unless it includes additional control functions.

What Types of Pressure Can a Pressure Gauge Measure?

Pressure measurements use different reference points. Understanding these references is important when selecting an instrument. Gauge pressure measures process pressure relative to surrounding atmospheric pressure. It normally reads zero when the measured system is open to the atmosphere.

Absolute pressure uses a perfect vacuum as its reference. It includes atmospheric pressure in the measurement. This reference is useful in vacuum systems, scientific equipment, and processes sensitive to atmospheric changes.

Differential pressure measures the difference between two pressure points. It does not simply indicate pressure at one connection. Instead, it compares high-side and low-side inputs. This method is useful for monitoring filter resistance, ventilation systems, and pressure drops across equipment.

Tip： Buyers should confirm the required pressure reference before ordering. Gauge pressure and absolute pressure readings are not interchangeable.

Common Pressure Units and Measurement Scales

Pressure gauges use several measurement units. Common options include Pascal (Pa), kilopascal (kPa), megapascal (MPa), bar, and pounds per square inch (PSI). The correct unit depends on regional practices and application requirements.

An analog gauge displays values through numbered dial markings. Operators read the pointer position against the calibrated scale. Digital instruments display numerical values directly. Some models also support unit switching, allowing users to select different measurement formats.

Unit consistency matters when equipment operates across international facilities. For example, a maintenance team may use MPa while a supplier specifies PSI. Incorrect conversion can cause measurement errors and operating misunderstandings. Buyers should therefore confirm the required unit before procurement.

How Does a Pressure Gauge Work? Understanding the Working Principles

How Pressure Creates Mechanical Deformation

Most mechanical pressure gauges rely on elastic deformation. Pressure enters the instrument and acts on a flexible sensing element. The element changes shape under the applied force. Its movement depends on pressure, geometry, material properties, and mechanical design.

When pressure increases, the sensing element experiences greater deformation. When pressure decreases, its elasticity allows it to move toward its original shape. This response creates a measurable displacement. The gauge mechanism converts that displacement into pointer movement.

The sensing element must maintain suitable elasticity throughout its intended operating range. Excessive pressure can permanently deform it. Repeated pressure shocks may also cause fatigue over time. These conditions can reduce accuracy or damage the instrument.

How a Bourdon Tube Pressure Gauge Converts Pressure into Movement

A Bourdon tube is a curved metal tube with an oval or flattened cross-section. It is one of the most widely used sensing elements in mechanical pressure gauges. One end connects to the pressure inlet. The other end remains sealed and free to move.

When pressurized fluid enters the tube, internal pressure acts against its curved walls. The tube cross-section tends to become more circular. This change causes the curved tube to straighten slightly. Its free end moves outward as pressure increases. When pressure falls, the tube moves back toward its original shape.

The displacement may appear small, but it is sufficient to operate a mechanical movement. The design, material, wall thickness, and tube geometry determine its response. Bourdon tube gauges are commonly used for medium and higher pressure measurements. They suit many applications involving air, water, oil, and compatible process gases.

The working principle of a Bourdon tube pressure gauge begins when gas or liquid enters the pressure connection. The internal pressure causes the Bourdon tube to deform and change its shape. This movement is transferred through connecting links and gears, converting mechanical displacement into rotational movement. Finally, the pointer moves across the calibrated dial to display the measured pressure.

How the Mechanical Movement Drives the Pointer

The Bourdon tube cannot display pressure directly. It needs a mechanical transmission system. A connecting link transfers movement from the tube's free end. This link operates a sector gear and pinion assembly. The gear mechanism converts linear displacement into rotational movement.

The pinion connects to the pointer shaft. As the pinion rotates, the pointer moves across the dial. The dial uses calibrated markings to represent pressure values. Its scale corresponds to the designed relationship between pressure and sensing element movement.

Mechanical friction can affect pointer response. Loose connections may also cause unstable readings. Therefore, gear quality and assembly accuracy matter. A well-designed movement helps maintain repeatable indication during normal operation.

How a Diaphragm Pressure Gauge Measures Pressure

A diaphragm pressure gauge uses a thin, flexible membrane as its sensing element. Pressure acts on one side of the diaphragm. The resulting deflection transfers movement to an indicator or electronic sensor.

Diaphragm designs can suit low-pressure measurement. They are also useful when process media are viscous, contaminated, or corrosive. An isolation diaphragm can separate the measured medium from the internal mechanism. This helps protect sensitive components from direct contact.

The material must still match the process medium. Stainless steel, special alloys, and other compatible materials may be considered. Selection depends on chemical properties, temperature, and operating pressure. Diaphragm gauges are common in chemical processing, wastewater treatment, and food production.

How a Digital Pressure Gauge Works

A digital pressure gauge uses an electronic pressure sensor instead of a mechanical pointer mechanism. Pressure acts on a sensing element inside the sensor. The element produces an electrical response. An electronic circuit processes this signal and converts it into a numerical pressure value.

The display may use LCD or LED technology. Depending on the model, additional functions can include unit switching, zero adjustment, and peak-value recording. Some instruments also support data transmission or alarm functions.

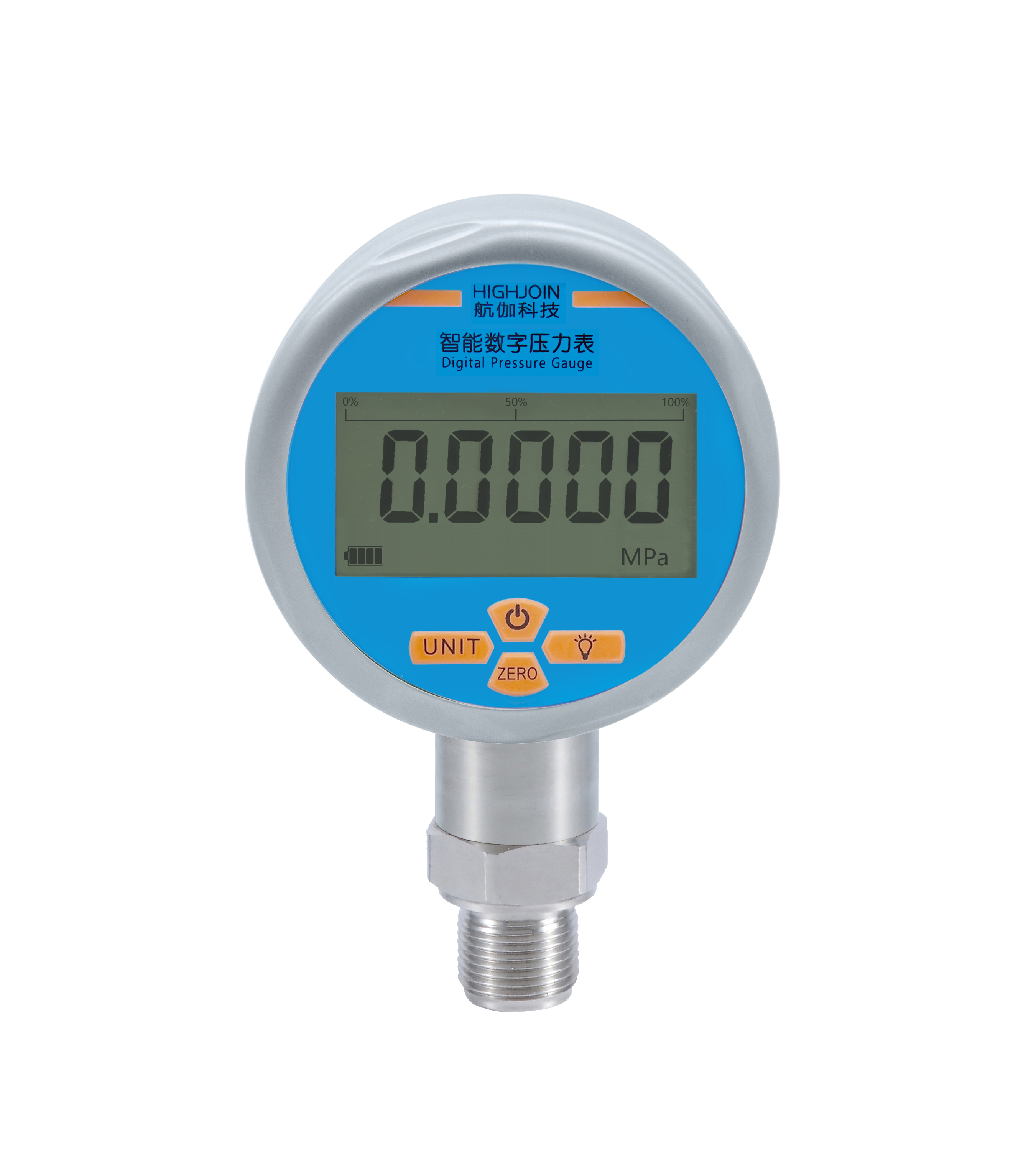

For example, the HPE80 Battery Powered 5-bits Electronic Digital Pressure Gauge uses a pressure-sensitive core and a five-digit LCD display. Its listed functions include unit switching, zero adjustment, and peak and low-value recording. The product specifications also identify gauge and absolute pressure measurement options. These features illustrate how electronic instruments can support field measurement and maintenance tasks.

Digital pressure gauges do not all have identical capabilities. Buyers should check accuracy, sampling rate, power supply, display resolution, and pressure range. They should also confirm whether the instrument supports the required pressure reference.

What Determines Pressure Gauge Measurement Accuracy?

Pressure gauge accuracy depends on several factors. The sensing element must respond consistently to applied pressure. Mechanical instruments can experience friction, hysteresis, and wear. Electronic instruments may experience sensor drift, electrical interference, or temperature-related changes.

Calibration compares the instrument against a suitable reference standard. It helps identify measurement deviation across the operating range. Accuracy specifications should be reviewed carefully. Some products express accuracy as a percentage of full scale. Others use different reference conditions.

Temperature can affect both mechanical and electronic designs. Vibration may cause pointer fluctuation or accelerate component wear. Pressure shocks can also exceed the instrument's intended limits.

Tip： Compare accuracy specifications under the same reference conditions. A percentage of full scale differs from a percentage of reading.

What Are the Main Components Inside a Pressure Gauge?

Pressure-Sensing Elements

The sensing element is the most important internal component. It responds directly to pressure changes. Different gauge designs use different sensing structures. Common examples include Bourdon tubes, diaphragms, and bellows.

Bourdon tubes use elastic deformation to measure pressure. They are suitable for many general industrial applications. Diaphragms respond to pressure through membrane deflection. They can support low-pressure measurement and media isolation. Bellows use a flexible corrugated structure. They expand or contract when pressure changes.

Each design has different measurement characteristics. Buyers should consider pressure range, media compatibility, and operating conditions. The sensing element must also withstand expected pressure fluctuations. Selecting the wrong structure can shorten service life and reduce measurement reliability.

Mechanical Movement and Pointer Assembly

Mechanical pressure gauges use several components to transfer movement. These usually include connecting links, sector gears, pinions, and pointer shafts. Each component contributes to the measurement process.

The connecting link transfers displacement from the sensing element. The gear assembly amplifies and converts this movement. The pointer then indicates the corresponding pressure value. These parts must work together smoothly.

Mechanical wear can affect measurement performance. Friction may cause delayed pointer movement. Damaged gears can produce irregular readings. Regular inspection helps identify these problems before instrument failure.

Dial, Case, Window, and Pressure Connection

The dial provides the measurement scale. Its markings help operators interpret pressure readings. The protective window shields internal components from dust and external contact. The case supports the internal assembly and protects it from environmental conditions.

The pressure connection links the instrument to the measured system. Common connection materials include brass and stainless steel. The correct material depends on the medium and installation environment. Thread standards also require careful confirmation.

Stainless steel cases are common in demanding industrial environments. They offer useful corrosion resistance and structural strength. However, material selection should consider the entire wetted assembly. A stainless steel case alone does not guarantee media compatibility.

What Are the Different Types of Pressure Gauges?

Pressure gauges differ in sensing technology, construction, and intended applications. Understanding these differences helps buyers avoid unsuitable configurations. Mechanical gauges provide direct local indication. Digital models offer electronic measurement and additional functions. Differential gauges compare pressure at two separate points.

Dry Pressure Gauges and Liquid-Filled Pressure Gauges

Dry pressure gauges contain air inside the instrument case. They are commonly used in relatively stable environments. Their structure is simple and easy to maintain.

Liquid-filled gauges contain damping fluid, often glycerin or silicone. The fluid reduces pointer vibration caused by mechanical movement. It can also protect internal components against some environmental influences. These gauges are useful around pumps, compressors, and vibrating equipment.

However, liquid filling does not solve every installation problem. Temperature changes can affect the filling fluid. Buyers should check the specified operating temperature and mounting conditions.

Stainless Steel Pressure Gauges

Stainless steel pressure gauges are designed for environments requiring corrosion resistance and durability. Their construction can include stainless steel cases and wetted components. They are widely considered for chemical processing, water treatment, and industrial machinery.

Material compatibility remains essential. Different chemicals can react differently with stainless steel grades. Buyers should confirm the material requirements for the measured medium. They should also check seals, connections, and diaphragm materials.

Diaphragm and Capsule Pressure Gauges

Diaphragm gauges use a flexible membrane to detect pressure. They can separate the process medium from sensitive internal mechanisms. This design is useful for certain corrosive or contaminated applications.

Capsule gauges typically use two corrugated diaphragms joined together. Their structure creates a sensitive element for low-pressure measurement. They are commonly used in ventilation, air monitoring, and laboratory equipment.

The main difference concerns sensitivity and operating range. Capsule designs are generally intended for low-pressure applications. Diaphragm designs cover a wider range of specialized process conditions.

Digital and Differential Pressure Gauges

Digital pressure gauges convert sensor signals into numerical readings. They may provide unit switching, zero adjustment, and peak-value recording. These functions help technicians perform field checks and equipment commissioning.

Differential pressure gauges compare pressure at two separate points. They show the difference between high-side and low-side pressure. This makes them useful for filter monitoring and ventilation control.

A digital pressure switch may also provide alarm or relay outputs. However, a pressure switch and a standard pressure gauge serve different functions. Buyers should confirm whether they need indication, automatic switching, or both.

Where Are Pressure Gauges Used in Industrial Applications?

Petroleum and Chemical Processing

Petroleum and chemical facilities use pressure gauges across pipelines, tanks, and processing equipment. Operators monitor pressure to maintain stable process conditions. Abnormal readings can indicate blockages, leakage, or equipment malfunction.

Material selection is especially important in these environments. Some media may corrode sensing elements or damage seals. Buyers should identify the chemical composition and operating temperature. They should then select suitable wetted materials and gauge structures.

Water Treatment and HVAC Systems

Water treatment facilities use pressure gauges on pumps, filters, and distribution pipelines. Pressure readings help operators evaluate system performance. Differential pressure measurement can also indicate filter loading.

HVAC systems use pressure instruments to monitor air ducts and water circuits. They help maintenance teams identify pressure losses and airflow restrictions. Low-pressure instruments may be required for ventilation applications.

Power Generation and Industrial Manufacturing

Power generation equipment requires reliable pressure monitoring. Gauges are used in boilers, steam systems, pumps, and auxiliary equipment. Operators use readings to assess operating conditions.

Manufacturing facilities also rely on pressure measurement. Hydraulic presses, injection molding machines, and compressors require stable pressure monitoring. Pressure shocks and vibration can affect instrument performance. Suitable mechanical protection or electronic designs can improve measurement reliability.

Gas Systems and General Industrial Equipment

Gas distribution systems use pressure gauges to monitor supply and operating pressure. The instrument must match the gas composition and pressure range. Connection compatibility is equally important.

General industrial equipment may require local indication or electronic monitoring. Some applications need only a visible dial. Others require digital readings and control outputs. The correct configuration depends on the equipment's control requirements.

What Factors Affect Pressure Gauge Performance and Reliability?

6.1 Pressure Range and Operating Conditions

Pressure range is one of the first selection factors. The instrument should cover normal operating pressure and expected fluctuations. A gauge that operates continuously near its upper limit may experience greater stress.

Overpressure can permanently deform mechanical sensing elements. Pressure surges may also damage internal components. Buyers should consider peak pressure, not only normal working pressure. Suitable overload protection may be necessary.

Temperature, Vibration, and Environmental Conditions

Temperature changes can affect sensing elements and electronic circuits. High temperatures may damage seals or influence measurement stability. Low temperatures may affect display performance and internal materials.

Vibration can cause pointer fluctuation in mechanical gauges. It may also accelerate gear wear. Liquid-filled designs can help reduce pointer movement. Electronic designs may provide other vibration-resistant features.

For example, the HP-S925 Lower & Back Mount Digital Pressure Switch is designed for equipment exposed to pressure shocks and strong vibration. Its listed applications include hydraulic presses and injection molding machines. It also provides relay outputs and adjustable alarm limits.

Material Compatibility and Connection Selection

The wetted materials must withstand the measured medium. Stainless steel is common in industrial pressure instruments. However, compatibility depends on the chemical properties and concentration of the medium.

Connection standards also affect installation. Common thread types include NPT, BSP, and BSPT. Their dimensions and sealing methods differ. Incorrect connections may cause leakage or installation difficulties.

Buyers should confirm thread type, mounting direction, connection size, and material. They should also check whether an isolation diaphragm or additional protection is required.

Calibration, Inspection, and Maintenance

Calibration helps verify measurement accuracy. It compares the gauge reading against a reference instrument. Inspection intervals should reflect operating conditions and application requirements.

Operators should watch for common warning signs. These include zero-point deviation, pointer sticking, unstable readings, and visible leakage. Damaged windows or corroded connections also require attention.

Maintenance records help identify repeated problems. They can reveal whether measurement errors result from vibration, overpressure, or material incompatibility. Regular checks support reliable operation and better equipment management.

Tip： Establish inspection intervals according to process risk, operating conditions, and instrument specifications.

Conclusion

Pressure gauges convert pressure changes into readable measurements. Understanding their working principles helps buyers select suitable instruments. HJ Sensor provides digital pressure gauges featuring clear displays, unit switching, and peak-value recording. Its pressure measurement solutions support reliable industrial monitoring and equipment maintenance.

FAQ

Q: What is a pressure gauge?

A: A pressure gauge measures gas or liquid pressure using mechanical or electronic sensing elements.

Q: How does a pressure gauge work?

A: It converts pressure changes into mechanical movement or electrical signals.

Q: How does a Bourdon tube pressure gauge work?

A: Internal pressure deforms the curved tube, moving a pointer through gears.

Q: What affects pressure gauge accuracy?

A: Temperature, vibration, calibration, friction, and sensing element quality affect accuracy.

Q: What is the difference between mechanical and digital pressure gauges?

A: Mechanical gauges use pointers, while digital models display electronic sensor readings.

Q: Why does a pressure gauge show unstable readings?

A: Pressure fluctuations, vibration, damaged components, or loose connections may cause unstable readings.
