Flow Meter Sizing Calculations And Technical Specifications

Introduction

Choosing the wrong flow meter can reduce accuracy and increase operating costs. Proper sizing is essential for reliable measurements. This guide explains flow meter sizing calculations, pipe diameter, and technical specifications. You will learn how to select a suitable meter for your industrial application.

What Information Is Needed Before Sizing a Flow Meter?

Correct sizing begins with accurate process information. A flow meter must match the measured medium and operating conditions. Missing information can lead to unsuitable recommendations. Buyers should prepare basic pipeline data before contacting manufacturers.

Fluid Type and Operating Characteristics

Fluid properties directly influence flow meter selection. Different instruments measure liquids, gases, and steam differently. Some technologies also require specific fluid characteristics. Electromagnetic flow meters, for example, require conductive liquids. Ultrasonic meters depend on acoustic signal transmission. Vortex meters require suitable flow conditions.

Density and viscosity also affect measurement performance. High-viscosity liquids may create different flow conditions. Abrasive fluids can cause wear in certain designs. Corrosive media require compatible wetted materials. Temperature changes may also affect fluid properties. Therefore, buyers should identify the medium before selecting an instrument.

Provide the following information when requesting recommendations:

• Fluid name and chemical composition.

• Density and viscosity.

• Electrical conductivity, where applicable.

• Normal operating temperature.

• Corrosive or abrasive characteristics.

• Whether the medium contains suspended solids.

Tip： Provide actual fluid data rather than using general descriptions such as industrial water.

Minimum, Normal, and Maximum Flow Rates

A flow meter must cover the complete operating range. Buyers should identify minimum, normal, and maximum flow rates. These values help determine the required measurement range. They also help manufacturers recommend suitable meter sizes.

Minimum flow is especially important. Some instruments cannot measure very low flow reliably. An oversized meter may operate below its effective range. This can reduce measurement stability. An undersized meter may experience excessive velocity or pressure loss.

Normal operating flow should remain inside the suitable measurement range. Buyers should also consider occasional process changes. A complete flow profile supports more accurate selection.

Pipe Diameter and Pipeline Configuration

Pipe diameter is an important sizing input. However, nominal pipe size is not the same as actual internal diameter. Wall thickness affects the available flow area. Engineers should therefore use the measured internal diameter.

Pipeline configuration also influences installation. Elbows, valves, reducers, and pumps can disturb flow. These components may create turbulence or uneven velocity profiles. Some flow meters require specific straight pipe sections. Others offer different installation options.

Buyers should provide pipe material and connection details. They should also identify available installation space. This information helps manufacturers evaluate the proposed configuration.

Operating Pressure and Temperature

Operating pressure and temperature affect instrument construction. The meter body must withstand the process conditions. Seals and wetted components must also remain compatible. Buyers should confirm normal and maximum operating values.

Pressure rating and pressure drop are different specifications. Pressure rating describes the pressure the instrument can withstand. Pressure drop describes the pressure lost as fluid passes through it. Both values matter during system design.

Note that the supplied pressure gauge references concern pressure measurement. They do not establish flow meter specifications. For flow meter selection, use the actual product datasheet and process requirements.

How Do You Calculate the Correct Flow Meter Size?

Flow meter sizing calculations help determine a suitable measurement diameter. They connect flow rate, pipe area, and fluid velocity. These values provide a starting point for instrument selection. However, the calculated diameter is not always the final meter size. Engineers must also consider meter technology and manufacturer recommendations. The following methods help buyers understand the sizing process.

Calculate Flow Rate Using Flow Velocity and Pipe Area

Volumetric flow rate describes the fluid volume passing through a pipeline. It depends on the pipe's cross-sectional area and average velocity. The basic flow meter sizing formula is:

Q = A × v

Where:

• Q = Volumetric flow rate (m³/s).

• A = Pipe cross-sectional area (m²).

• v = Average fluid velocity (m/s).

For a circular pipeline, calculate its internal area first:

A = π × D² ÷ 4

Here, D represents the actual internal pipe diameter. Combining both formulas gives the relationship between flow rate and pipe size. Engineers can use this calculation for preliminary sizing.

Consider a water pipeline carrying 10 m³/h. Its assumed average velocity is 2 m/s. First, convert the flow rate into cubic meters per second:

Q = 10 ÷ 3,600 = 0.00278 m³/s

Next, calculate the required internal diameter:

D = √(4 × Q ÷ π × v)

The correct calculation places π and v together in the denominator:

D = √(4 × 0.00278 ÷ (π × 2))

The resulting diameter is approximately 0.042 m, or 42 mm. This value represents the calculated internal diameter. It does not automatically determine the final meter connection size.

Engineers must compare this result against available pipe dimensions. They should also check the selected meter's measurement range. Manufacturer sizing recommendations remain essential.

Calculate Pipe Diameter From Required Flow Rate

Pipe diameter calculations help determine the cross-sectional area needed for a target flow rate. The rearranged formula is:

D = √(4 × Q ÷ (π × v))

A higher target velocity produces a smaller calculated diameter. A lower target velocity produces a larger diameter. However, neither extreme is automatically suitable.

Excessive velocity may increase pressure loss and mechanical wear. Very low velocity may affect certain meter technologies. Engineers should therefore use an appropriate velocity range for the application.

Always use the actual internal diameter. Nominal pipe size alone may produce incorrect calculations. Pipe material and wall thickness can change the available flow area.

After calculating the diameter, compare it with standard pipe dimensions. Then confirm the proposed meter size. Some applications require a meter smaller or larger than the pipeline. Reducers and expansion fittings may be necessary. Their installation effects must also be evaluated.

Determine the Required Flow Meter Measurement Range

The measurement range determines which flow conditions a meter can measure reliably. Buyers should provide minimum, normal, and maximum flow rates. These values help manufacturers evaluate the required operating range.

Turndown ratio describes the relationship between maximum and minimum measurable flow. A wider ratio may accommodate greater process variation. However, its actual value depends on meter technology and operating conditions.

An oversized meter may struggle during low-flow operation. Its readings may become unstable or less useful. An undersized meter may exceed its recommended operating range. This can increase pressure loss or damage sensitive components.

For example, a water system may operate at changing flow rates. Its normal demand may differ significantly from peak demand. The selected meter must accommodate both conditions. Buyers should check the manufacturer's specified minimum flow and maximum flow.

Tip： Never select a meter using maximum flow alone. Confirm its performance at normal and minimum operating conditions.

Evaluate Flow Velocity and Its Effect on Meter Performance

Flow velocity describes how quickly fluid moves through a pipeline. It affects the performance of many flow measurement technologies. Different meter designs respond differently to velocity changes.

Low velocity may create measurement challenges. Some instruments have minimum operating requirements. High velocity may increase turbulence and pressure loss. Abrasive particles can also accelerate internal wear.

Electromagnetic meters measure conductive liquids through electromagnetic induction. Their selection depends on suitable velocity and conductivity conditions. Turbine meters depend on rotor movement. Their response is influenced by fluid properties and operating range. Vortex meters detect vortices generated around an internal body.

Engineers should compare velocity against manufacturer recommendations. They should also consider viscosity and suspended particles. These factors help determine whether a selected meter suits the process.

Estimate Pressure Drop Across the Flow Meter

Pressure drop describes the pressure reduction across an installed meter. It results from flow resistance and internal geometry. Different meter technologies produce different pressure losses.

Meters containing internal restrictions may create greater pressure drop. Other designs offer relatively unobstructed flow paths. However, actual performance depends on meter size and operating conditions.

A differential pressure meter uses a pressure difference to calculate flow. Its primary element intentionally creates a pressure differential. Other technologies may introduce pressure loss through their internal construction.

Buyers should request pressure drop data from manufacturers. They should confirm the expected loss at normal flow. Maximum flow conditions also require evaluation. The available process pressure must support the complete system.

A pressure gauge can help monitor pipeline pressure. However, it does not directly calculate flow rate. Separate pressure measurements may help engineers evaluate system performance.

Consider Reynolds Number and Flow Conditions

Reynolds number helps describe fluid flow behavior. It compares inertial forces against viscous forces. Engineers use it to evaluate whether flow is laminar or turbulent.

The basic formula is:

Re = (ρ × v × D) ÷ μ

Where:

• Re = Reynolds number.

• ρ = Fluid density (kg/m³).

• v = Average flow velocity (m/s).

• D = Internal pipe diameter (m).

• μ = Dynamic viscosity (Pa·s).

Laminar flow generally involves smoother fluid movement. Turbulent flow involves stronger mixing and fluctuations. Transitional conditions can occur between these states.

Reynolds number matters for several measurement technologies. Differential pressure calculations often depend on flow conditions. Other meters have different operating principles. Therefore, Reynolds number should support technology selection rather than act as a universal sizing rule.

For gases and changing process conditions, density may vary. Engineers should use operating pressure and temperature. These inputs improve the reliability of calculations.

Tip： Reynolds number alone cannot determine the correct flow meter size. Always combine it with technology-specific sizing requirements.

Which Technical Specifications Matter When Selecting a Flow Meter?

After completing preliminary calculations, buyers must review technical specifications. These specifications determine whether an instrument suits the application. They also help compare products from different manufacturers.

Measurement Range, Accuracy, and Repeatability

Measurement range defines the flow values supported by the instrument. Accuracy describes how closely readings match actual values. Repeatability describes consistency under repeated conditions.

These specifications are related but different. A meter may produce consistent readings while showing a systematic error. Buyers should therefore evaluate both accuracy and repeatability.

Turndown ratio also deserves attention. It indicates the available measurement range relative to minimum flow. A suitable ratio helps accommodate changing process demand.

Pressure Rating and Temperature Range

The meter body must withstand operating pressure. Its seals and internal components must also tolerate process temperature. Buyers should check normal and maximum operating conditions.

Pressure rating describes the instrument's pressure-bearing capability. Temperature limits define its approved operating environment. These values must match the process requirements.

For example, HJ Sensor's HFM100 electromagnetic flow meter lists different pressure grades according to nominal diameter. Its published sensor temperature range also depends on configuration. Buyers should verify the selected model's exact limits before ordering.

Wetted Materials and Fluid Compatibility

Wetted materials contact the measured medium directly. Their compatibility affects service life and measurement reliability. Stainless steel is common in industrial flow measurement. Other materials may suit specific chemical conditions.

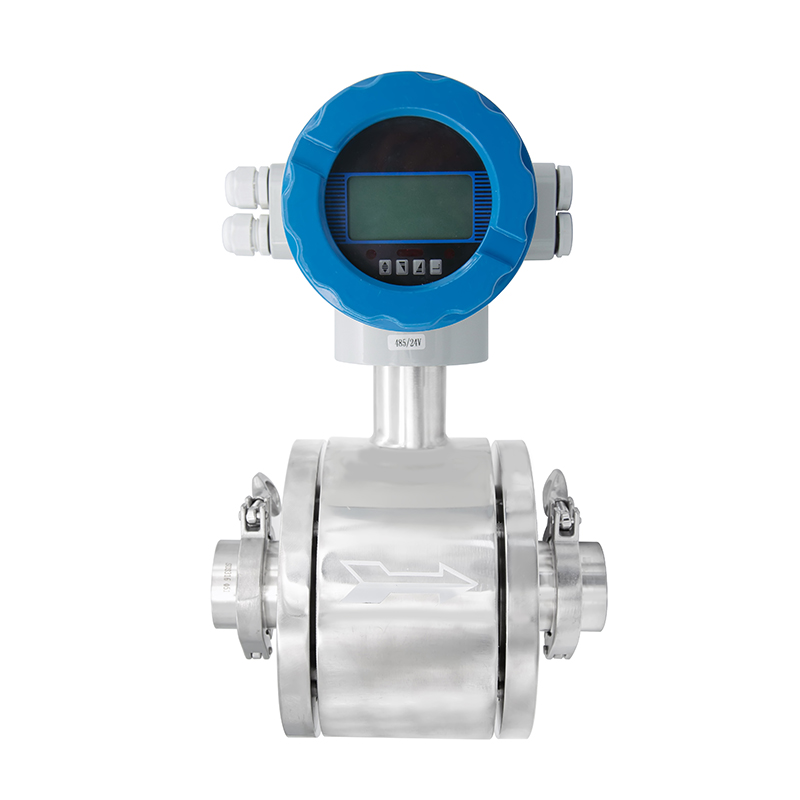

For example, the HFM100 sanitary electromagnetic flow meter uses an SS316 body. Its product information lists 316L electrodes. Optional electrode materials include Hastelloy and titanium. Lining options include PTFE and PFA. These configurations support different fluid compatibility requirements.

Buyers should evaluate the complete wetted assembly. The body material alone is not enough. Electrodes, liners, seals, and connections matter. Corrosive or abrasive media require additional attention.

Output Signals and Communication Options

Output signals determine how the meter communicates measurements. Common industrial options include 4–20 mA and pulse outputs. Some instruments also support RS485 or HART communication.

These interfaces connect flow meters to control systems. They can support PLCs and monitoring platforms. Buyers should verify signal compatibility before ordering.

HJ Sensor's HFM100 product information lists 4–20 mA, pulse, RS485, and optional HART outputs. These options depend on the selected configuration. Buyers should confirm the required interface in their quotation.

How Do Different Flow Meter Types Affect Sizing Calculations?

Different flow meters use different measurement principles. Their sizing requirements are therefore not identical. Buyers should understand these differences before selecting equipment.

Electromagnetic Flow Meter

An electromagnetic flow meter measures conductive liquids. It operates according to Faraday's law of electromagnetic induction. Fluid movement through a magnetic field generates an electrical signal. The instrument converts this signal into a flow measurement.

Its sizing depends on pipe diameter, flow velocity, and liquid conductivity. The pipeline should remain full during measurement. Excessive air bubbles or unsuitable fluid conditions may affect performance.

HJ Sensor's HFM100 Digital Display Electromagnetic Water Flow Meter is one product example. Its published information lists a conductivity requirement above 5 μS/cm. It also offers different lining and electrode materials. These options help accommodate different conductive liquids.

Ultrasonic Flow Meter

Ultrasonic flow meters use sound waves to measure fluid movement. Transit-time models compare upstream and downstream signal travel times. Doppler models use frequency changes from suspended particles or bubbles.

Their sizing depends on pipe dimensions and fluid conditions. Pipe material also influences signal transmission. Installation position and acoustic coupling require attention.

Some ultrasonic meters install externally. They can measure flow without cutting the pipeline. This feature may reduce installation work. However, pipe condition and fluid characteristics remain important. Buyers should confirm compatibility before selecting this technology.

Vortex and Turbine Flow Meters

Vortex flow meters detect vortices created behind an internal obstruction. The vortex frequency relates to fluid velocity. They can measure suitable liquids, gases, and steam.

Their sizing depends on flow velocity and operating conditions. Very low flow may produce weak signals. High flow may exceed the recommended operating range. Pressure loss also requires evaluation.

Turbine flow meters use a rotating internal rotor. Fluid movement causes the rotor to turn. Its rotation produces a signal related to flow rate. These meters can provide useful measurement performance under suitable conditions.

However, viscosity and fluid cleanliness matter. Particles may affect rotor movement. Buyers should confirm minimum flow requirements and maintenance needs.

Differential Pressure Flow Meters

Differential pressure flow meters calculate flow from a pressure difference. Common primary elements include orifice plates and venturi tubes. Fluid passes through a restriction. This creates a measurable pressure difference.

For many standard differential pressure arrangements, flow rate is related to the square root of differential pressure. Density and other fluid properties also influence the calculation.

These instruments require suitable pressure measurement ranges. Their primary elements also create pressure loss. Buyers should evaluate both permanent pressure loss and available system pressure.

Tip： Select measurement technology before finalizing the meter diameter. Different technologies have different operating requirements.

How Do Installation Conditions Influence Flow Meter Sizing?

Correct calculations do not guarantee accurate measurements. Installation conditions also affect performance. Engineers must evaluate pipeline layout and environmental factors.

Straight Pipe Length and Flow Profile

Elbows and valves can disturb fluid movement. They may create turbulence or uneven velocity distribution. These conditions can influence measurement accuracy.

Some flow meters require straight pipe sections upstream and downstream. Their required lengths depend on the meter design. Installation instructions should determine the actual requirements.

Reducers and pumps also affect flow profiles. Flow conditioners may help in certain installations. However, they cannot replace proper installation planning.

Buyers should provide pipeline drawings when possible. These drawings help manufacturers evaluate installation restrictions.

Pipeline Orientation and Full-Pipe Conditions

Pipeline orientation affects several measurement technologies. Electromagnetic flow meters generally require a full pipe. Air pockets can interrupt reliable measurement.

Horizontal installations should avoid locations where air collects. Vertical installations should maintain suitable flow direction. The exact arrangement depends on the instrument.

Drainage and empty-pipe conditions also matter. Some systems require empty-pipe detection. Others need suitable installation positions to prevent sediment accumulation.

For sanitary applications, drainage and cleaning are important. HJ Sensor's HFM100 SS316L Tri-Clamp Electromagnetic Beer Flow Meter provides a sanitary connection configuration. Its product information identifies brewery and beverage applications.

Vibration, Temperature, and Environmental Conditions

External vibration may affect instrument stability. Temperature changes can influence electronics and materials. Moisture may also affect unsuitable electrical enclosures.

Buyers should evaluate the installation environment. Outdoor equipment may require suitable protection. High-temperature processes need compatible sensor construction.

Electrical interference is another consideration. Signal cables should follow manufacturer installation instructions. Proper grounding may be important for electromagnetic meters.

These factors should appear in the technical requirement sheet. They help manufacturers recommend suitable configurations.

How Can Buyers Verify Flow Meter Specifications Before Ordering?

A suitable flow meter must satisfy both measurement and installation requirements. Buyers should compare complete technical specifications. They should not select products using diameter alone.

Prepare a Complete Technical Requirement Sheet

Prepare process information before requesting quotations. This helps manufacturers evaluate the actual application. It also reduces unnecessary specification changes.

A useful requirement sheet should include:

This information gives suppliers a clearer technical picture. They can recommend suitable meter technologies and configurations.

Compare Manufacturer Datasheets and Sizing Recommendations

Manufacturer datasheets provide essential selection information. Buyers should compare measurement range and accuracy. They should also review pressure ratings and temperature limits.

Connection dimensions must match the pipeline. Wetted materials must suit the fluid. Output signals should match existing control equipment.

For example, HJ Sensor lists several flow measurement technologies. Its Flow Meter Product Range includes electromagnetic, vortex, turbine, and other configurations. Buyers can compare available product categories before requesting recommendations.

The HFM100 electromagnetic models provide useful configuration examples. The sanitary version uses an SS316L wetted construction. The digital water flow meter lists a 0.5 accuracy grade. These are published product specifications, not universal industry requirements. Confirm the exact configuration before ordering.

Common Flow Meter Sizing Mistakes

Several common mistakes can affect selection. Buyers sometimes choose meters using nominal pipe size alone. Others ignore minimum operating flow. Both approaches can produce unsuitable results.

Another mistake involves confusing accuracy and repeatability. These specifications describe different performance characteristics. Buyers should also avoid overlooking viscosity and conductivity.

Pressure drop is another important consideration. A meter may meet measurement requirements but create excessive system resistance. Installation restrictions can also affect performance.

Before placing an order, check the following:

• Confirm the actual internal pipe diameter.

• Verify the complete operating flow range.

• Check fluid compatibility and measurement principles.

• Compare pressure ratings and temperature limits.

• Confirm output signal compatibility.

• Review installation and straight pipe requirements.

• Request manufacturer sizing recommendations.

Tip： Ask suppliers to confirm the proposed meter size in writing. Keep the sizing basis alongside the final quotation.

Conclusion

Accurate flow meter sizing improves measurement reliability and system efficiency. Proper selection requires evaluating flow rate, pipe diameter, fluid properties, and operating conditions. HJ Sensor offers electromagnetic flow meters with flexible material and output options, supporting reliable industrial flow measurement and customized application requirements.

FAQ

Q: How do you calculate flow meter size?

A: Use flow rate, pipe diameter, and velocity to calculate suitable sizing.

Q: Why is flow meter sizing important?

A: Correct sizing improves accuracy and reduces pressure loss.

Q: What affects flow meter accuracy?

A: Fluid properties, velocity, installation, and operating conditions.

Q: How do you choose a flow meter?

A: Compare measurement range, accuracy, materials, and output signals.

Q: Which flow meter suits conductive liquids?

A: Electromagnetic flow meters suit conductive liquids such as water.
