Pressure Gauge Advantages For Modern IoT Sensor Networks

Introduction

How can a pressure gauge improve modern industrial IoT monitoring? Connected pressure sensors provide real-time data and remote visibility. They also support predictive maintenance and faster fault detection. This guide explores their key advantages, technologies, and applications. You'll learn how to integrate pressure measurement into modern IoT sensor networks.

How Do Pressure Gauges Connect With Modern IoT Sensor Networks?

From Traditional Pressure Gauges to Smart Pressure Monitoring

Traditional pressure gauges use mechanical sensing elements. Bourdon tubes and diaphragms respond to pressure changes. Their movement drives a pointer across a dial. Operators read the measurement directly from the instrument. These gauges remain useful for local monitoring. They provide a straightforward indication without requiring external power. However, they usually cannot transmit readings automatically. Remote monitoring therefore requires additional measurement equipment.

Digital pressure gauges use electronic sensing technology. Their sensors convert pressure into electrical signals. Internal circuits process these signals into readings. Some models also provide alarms and recording functions. These features support more convenient equipment monitoring. However, a digital display does not guarantee network connectivity. IoT integration requires compatible communication interfaces or external equipment. A connected pressure monitoring system may combine sensors, gateways, and software. Together, they make pressure information available beyond the installation point.

How IoT-Enabled Pressure Sensors Collect Operating Data

An IoT pressure monitoring system begins with pressure sensing. A sensitive element responds to applied pressure. It produces an electrical signal corresponding to the measured condition. Electronic circuits then process this signal. The system converts it into usable measurement data.

Depending on the sensor design, the output may be analog or digital. Common industrial outputs include 4–20 mA. Digital interfaces may support additional communication functions. A gateway can collect readings from multiple instruments. It then forwards suitable data to monitoring software.

This process allows operators to view pressure conditions centrally. They can compare readings across different machines. Historical records also support equipment performance analysis. However, each component must support the required interface. Sensor output, gateway compatibility, and software configuration matter. Buyers should verify these details before purchasing equipment.

How Pressure Data Travels Through an IoT Network

Pressure data moves through several connected components. First, the sensor measures the process pressure. Next, an electronic circuit prepares the measurement signal. A controller or gateway receives the data. It then transfers information to a monitoring platform.

Communication options depend on the application. Industrial systems may use wired interfaces or wireless technologies. Examples include Wi-Fi, Bluetooth, and LoRaWAN. Wired systems may use 4–20 mA or industrial communication protocols. Each option has different requirements for distance, power, reliability, and compatibility.

A monitoring platform displays pressure readings and historical trends. Operators can review equipment conditions remotely. Alarm rules may also notify personnel about abnormal values. Network security and communication reliability remain important. Industrial buyers should evaluate the complete data pathway.

How Pressure Monitoring Supports Connected Equipment

Connected pressure monitoring supports many industrial assets. Pumps, compressors, pipelines, and production machines all require pressure monitoring. Sensors can collect readings from important measurement points. A central platform then displays the available information.

This arrangement helps maintenance teams compare operating conditions. They can identify unusual changes across connected equipment. It also supports more organized inspection planning. For example, pressure differences across a filter may indicate increasing resistance. Operators can investigate before performance deteriorates.

Tip： Traditional mechanical gauges can complement IoT systems. They provide local readings, but need separate electronic devices for remote data transmission.

What Are the Main Advantages of Pressure Gauges in IoT Sensor Networks?

Real-Time Pressure Monitoring and Faster Response

Real-time pressure monitoring improves operating visibility. Connected sensors provide readings at configured intervals. Operators can observe changing pressure conditions centrally. They do not need to inspect every instrument manually. This is especially useful across large facilities. Remote equipment can also become easier to monitor.

Pressure changes may indicate several operating problems. Sudden increases can suggest restrictions or closed valves. Unexpected decreases may indicate leakage or equipment problems. Continuous data collection helps operators identify these changes earlier. They can investigate potential problems before they become serious.

However, real-time monitoring depends on system configuration. Sampling intervals affect how frequently data updates. Communication delays may also influence display speed. Critical processes may require faster measurement and alarm responses. Buyers should define these requirements before integration.

Remote Pressure Monitoring Across Multiple Locations

Remote pressure monitoring helps operators manage distributed equipment. A connected platform can collect readings from multiple locations. Personnel can review pressure conditions from a central workstation. This reduces dependence on repeated site inspections.

The approach is useful for water networks and pipelines. It can also support storage facilities and remote production sites. Operators can compare measurements across different locations. Unusual pressure changes become easier to identify. Maintenance teams can then prioritize necessary inspections.

Remote access also improves information sharing. Engineering and maintenance teams can review common records. This supports more consistent operational decisions. However, network coverage and system security require attention. Access permissions should also match operational responsibilities.

Predictive Maintenance Through Pressure Data Analysis

Pressure data can support predictive maintenance programs. Historical readings reveal changes in equipment behavior. Maintenance teams can compare current values against normal patterns. Persistent deviations may indicate developing problems.

For example, increasing differential pressure across a filter may suggest blockage. Repeated pressure drops may indicate leakage. Unstable readings can also reveal process disturbances. These patterns help technicians decide when inspection is necessary.

Predictive maintenance requires more than collecting readings. It needs reliable sensors and useful historical data. Teams must also understand normal operating conditions. Data analysis can support maintenance decisions. However, pressure trends alone cannot confirm every mechanical fault.

Improved Measurement Visibility and Data Accuracy

Digital pressure measurement improves reading visibility. Numerical displays reduce dependence on pointer interpretation. Electronic records also support consistent data collection. Operators can compare readings more easily.

However, display resolution and measurement accuracy differ. Resolution describes the smallest displayed increment. Accuracy describes closeness to the reference value. A digital display does not automatically provide better accuracy. Sensor quality and calibration remain essential.

Connected monitoring also helps preserve measurement records. Teams can review pressure changes over time. This improves traceability during troubleshooting. They can also compare readings against operating limits. Reliable records support better maintenance decisions.

Better Operational Efficiency and Reduced Labor Requirements

Automated pressure data collection can reduce routine inspection work. Operators can review readings from centralized dashboards. Maintenance teams can focus on equipment requiring attention. This may improve inspection planning across large facilities.

The benefits depend on installation scale. A small system may gain limited labor savings. A distributed facility may benefit more from centralized monitoring. Automated reports can also reduce manual recordkeeping. Teams spend less time copying individual readings.

Alarm Notifications and Automated Equipment Protection

Connected pressure monitoring can use preset thresholds. When readings exceed configured limits, the system can generate alarms. Notifications may reach operators through monitoring software. Some systems can also communicate with controllers.

Automatic responses require suitable control hardware. A pressure sensor alone does not guarantee equipment protection. The complete system must include compatible controllers and safety logic. Critical applications also require suitable fail-safe design.

Historical Data Analysis and Smarter Industrial Decisions

Historical pressure data supports long-term analysis. Operators can compare readings across production periods. They can identify recurring pressure fluctuations. These records may reveal process inefficiencies or maintenance needs.

Trend analysis also supports equipment comparisons. Teams can review pressure behavior across similar machines. They can investigate differences between operating conditions. This helps improve maintenance planning and process control.

Tip： Define normal pressure patterns before creating alarm thresholds. Poorly selected limits can generate unnecessary notifications.

Which Pressure Gauge Technologies Support IoT Integration?

Different pressure measurement technologies serve different monitoring needs. Buyers should distinguish local indication from data communication. A mechanical gauge can provide stable readings without network functions. Digital sensors can support electronic data collection. Additional interfaces determine whether remote integration is possible.

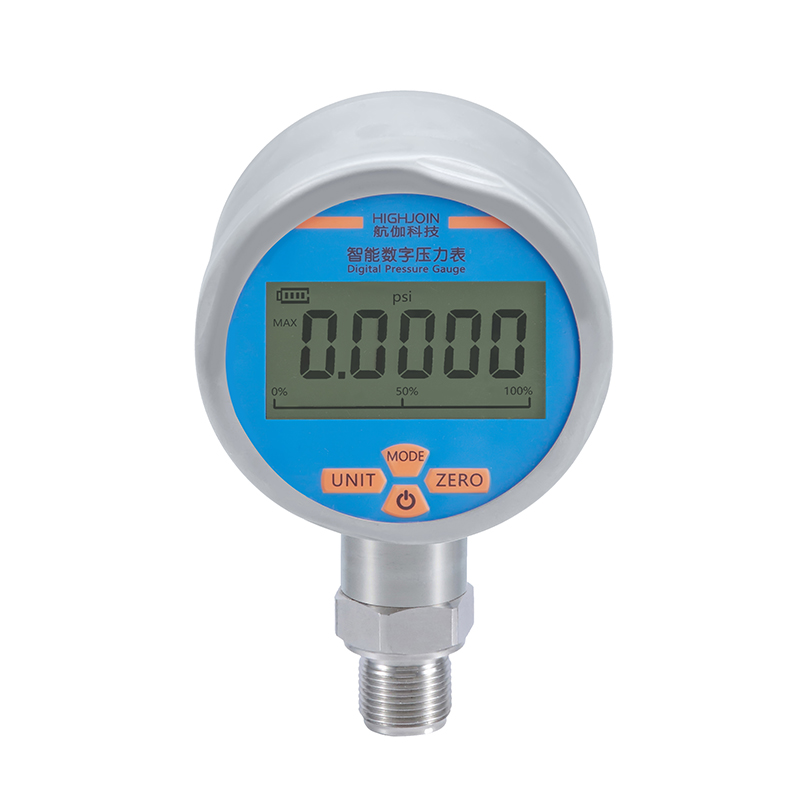

Digital Pressure Gauges With Electronic Measurement

Digital pressure gauges use electronic sensors and display circuits. They convert pressure signals into numerical readings. Many models provide additional measurement functions. These may include unit switching, zero adjustment, and peak-value recording. Some also support alarms and external signal outputs.

For example, HJ Sensor offers the HP-S260 Intelligent Digital Pressure Gauge. Its published specifications include a standard accuracy of 1.0%. It supports three-bit or four-bit LCD displays. Its listed maximum measuring range reaches 25 MPa. The product also provides zeroing, backlighting, unit switching, and low-pressure alarms. These functions support local digital pressure monitoring. However, its published product information does not establish built-in wireless or cloud connectivity.

Digital pressure gauges can serve as measurement points in connected systems. Their actual integration depends on available outputs. Buyers should check communication interfaces before ordering. They should also confirm sensor accuracy and operating conditions.

Wireless Pressure Monitoring Sensors

Wireless pressure sensors transmit measurement data through radio communication. They can reduce the need for signal cables. This is useful in distributed facilities and difficult installation areas. Wireless systems may also simplify additional monitoring points.

Common technologies include Wi-Fi, Bluetooth, and LoRaWAN. Each technology offers different communication characteristics. Wi-Fi may suit facilities with existing wireless networks. Bluetooth often supports nearby device communication. LoRaWAN can support low-power, long-distance sensor networks.

Battery life is an important consideration. Frequent data transmission can increase power consumption. Signal interference may also affect communication reliability. Buyers should evaluate coverage and maintenance requirements. They should also confirm network security and device compatibility.

Pressure Transmitters and Industrial IoT Data Collection

Pressure transmitters are important components in industrial monitoring. They convert pressure measurements into standardized output signals. Common industrial outputs include 4–20 mA. Some models also support digital communication protocols.

A transmitter can connect to a PLC or data acquisition system. The controller processes incoming measurements. A gateway can then forward data to monitoring software. This creates a practical connection between pressure measurement and industrial IoT systems.

Unlike a local pressure gauge, a transmitter supports remote signal processing. It can provide continuous measurement information to connected equipment. However, the required communication interface depends on the complete system. Buyers should confirm signal type and controller compatibility.

HJ Sensor offers several pressure measurement categories. These include industrial pressure sensors and pressure transmitters. Their suitability depends on the required output and installation conditions. Buyers should review individual product datasheets before selecting an integration solution.

Liquid-Filled Pressure Gauges in Connected Industrial Environments

Liquid-filled pressure gauges remain useful in connected factories. They provide local pressure indication near equipment. Glycerin or silicone oil helps dampen pointer movement. This improves readability around vibrating machinery.

For example, the HPB 2-inch Liquid-Filled Stainless Steel Pressure Gauge offers a stainless steel case. Its standard accuracy is ±1.6%. An optional accuracy specification is ±1.0%. Available dial sizes include several common industrial configurations. The product information also identifies applications involving vibration and dynamic pressure.

Liquid filling does not provide electronic communication. It only helps stabilize local pointer indication. A separate sensor or transmitter is necessary for remote data collection. Both instruments can work together in one installation. One provides local visibility, while another supplies electronic data.

Tip： Do not confuse digital indication with IoT connectivity. Always verify the communication interface and output specifications.

Where Can IoT-Connected Pressure Gauges Be Used?

Smart Manufacturing and Industrial Automation

Manufacturing facilities use pressure measurement across many production systems. Hydraulic machines require stable operating pressure. Compressors supply compressed air to production equipment. Pumps maintain fluid movement throughout processing lines.

Connected sensors can collect pressure readings from important equipment. Operators can review these measurements centrally. They can identify abnormal pressure changes more quickly. Historical records also support equipment condition analysis.

For example, a factory may monitor compressor discharge pressure. A sudden change can trigger an inspection. Technicians can then check filters, valves, and pipelines. This supports more organized maintenance activities.

Water Treatment and Pipeline Monitoring

Water treatment facilities depend on stable pressure conditions. Pumps and pipelines require regular monitoring. Pressure changes can indicate leakage or flow restrictions. Connected sensors help collect readings across distributed networks.

Operators can compare pressure data from different locations. They can identify unusual pressure losses. This helps maintenance teams prioritize field inspections. Differential pressure sensors can also monitor filter conditions.

Remote monitoring is particularly useful across large networks. However, sensor placement requires careful planning. Each measurement point should provide useful operating information. Communication coverage and environmental protection also matter.

HVAC and Building Management Systems

HVAC systems use pressure measurement for air and water circulation. Differential pressure sensors monitor filters and ventilation ducts. They can also support pressure control across building zones.

Connected pressure data helps building managers review system conditions. Increasing filter pressure differences may indicate blockage. Abnormal duct pressure can suggest airflow problems. Operators can use these readings to plan maintenance.

Centralized monitoring also improves visibility across multiple buildings. It allows maintenance teams to compare equipment conditions. Suitable sensor ranges and installation positions remain important.

Oil, Gas, and Chemical Processing

Oil, gas, and chemical facilities require reliable pressure monitoring. Pipelines, tanks, and processing equipment operate under different pressure conditions. Connected sensors can provide measurement data from critical locations.

Material compatibility is especially important. Process media may contain corrosive substances. Wetted components must suit the measured medium. Temperature and pressure conditions also affect instrument selection.

Hazardous areas require additional attention. Sensors and communication equipment must meet applicable protection requirements. Buyers should verify certifications and installation conditions. Standard wireless equipment should not be assumed suitable for hazardous locations.

What Should Buyers Consider When Choosing Pressure Gauges for IoT Networks?

Measurement Range and Accuracy Requirements

Start by identifying normal operating pressure. Then determine maximum pressure and possible surges. The selected instrument must cover these conditions. It should also provide suitable measurement accuracy.

Accuracy and resolution describe different characteristics. Accuracy indicates closeness to a reference value. Resolution describes the smallest displayed measurement increment. Both should match the monitoring requirements.

Buyers should also check calibration information. Sensor performance may change over time. Regular verification helps maintain measurement reliability.

Communication Protocols and System Compatibility

Communication compatibility determines whether sensors can join an IoT network. Buyers should identify the required interface first. Common options include 4–20 mA and digital protocols. Wireless options may include Wi-Fi or LoRaWAN.

The gateway and monitoring platform must support the selected interface. Data formats and configuration settings also matter. Some systems require additional communication modules. Others need protocol converters or controllers.

Tip： Request the complete interface specification before purchasing connected pressure equipment.

Power Supply and Network Reliability

Digital pressure devices may use batteries or external power. Battery-powered models can simplify installation. However, their operating life depends on usage and transmission settings. External power may suit continuous monitoring installations.

Wireless reliability also deserves attention. Metal structures can weaken radio signals. Industrial interference may affect communication quality. Buyers should evaluate actual site conditions before deployment.

Network failure procedures should also be considered. Critical systems may require local alarms or backup communication. These measures help maintain monitoring continuity.

Materials, Protection, and Environmental Conditions

Sensor materials must match the measured medium. Stainless steel is common in demanding industrial applications. Brass may suit certain general-purpose applications. The correct choice depends on chemical compatibility and operating conditions.

Environmental protection is equally important. Moisture, dust, vibration, and temperature can affect performance. Buyers should check enclosure ratings and temperature limits. They should also evaluate pressure shock resistance.

For mechanical gauges, liquid filling can reduce pointer fluctuations. For electronic sensors, suitable mechanical protection may be necessary. The complete assembly should match the installation environment.

How Can Businesses Evaluate the Value of IoT Pressure Monitoring?

Compare Traditional Manual Monitoring With Connected Monitoring

Traditional pressure monitoring depends on local inspections. Operators visit each measurement point and record readings. This approach works for simple equipment installations. However, it becomes less convenient across large facilities.

Connected monitoring collects pressure data automatically. Operators can review readings through centralized software. They can also compare historical measurements. This improves information availability and supports faster investigation.

Connected monitoring does not eliminate every inspection. Physical checks and calibration remain necessary. However, it can reduce repeated manual reading tasks. Its value increases when equipment is widely distributed.

Evaluate Installation and Integration Costs

An IoT pressure monitoring project involves several components. These may include sensors, transmitters, gateways, and software. Installation also requires suitable electrical connections. Wireless systems may need network planning and coverage testing.

Existing industrial infrastructure can influence costs. Compatible controllers may reduce additional integration work. Unsupported protocols may require converters. Software licensing and maintenance also affect total expenses.

Buyers should calculate the complete project cost. They should not compare sensors using purchase price alone. Installation, communication, calibration, and maintenance all matter. A phased deployment can help control initial investment.

Measure Long-Term Operational Benefits

The long-term value comes from better operating visibility. Continuous pressure data helps identify abnormal conditions. Earlier detection can support timely maintenance. It may also help reduce unnecessary equipment inspections.

Businesses should establish measurable performance indicators. Useful indicators include inspection hours and equipment downtime. Maintenance response time is another important measure. Pressure-related failure records can also provide useful comparisons.

Actual savings depend on the application. They cannot be assumed from sensor installation alone. Reliable data and suitable maintenance procedures are essential. Companies should evaluate results after implementation.

Tip： Compare operating costs before and after deployment. Use actual maintenance records to evaluate investment returns.

Conclusion

IoT-connected pressure gauges improve monitoring through real-time data and remote access. They also support predictive maintenance and better operational decisions.

HJ Sensor offers digital and liquid-filled pressure gauges. Its products provide clear readings, stable indication, and practical monitoring functions. The company supports industrial buyers with suitable pressure measurement solutions.

FAQ

Q: How do pressure gauges support IoT sensor networks?

A: They provide pressure data for real-time monitoring and remote analysis.

Q: What are the advantages of IoT pressure monitoring?

A: It supports predictive maintenance, faster responses, and reduced manual inspections.

Q: Can digital pressure gauges connect to IoT systems?

A: Yes, if they support compatible communication interfaces or external gateways.

Q: What is the difference between digital and IoT pressure gauges?

A: Digital gauges display readings; IoT devices transmit data remotely.

Q: How do you choose an IoT pressure sensor?

A: Check accuracy, pressure range, communication protocols, power supply, and compatibility.
