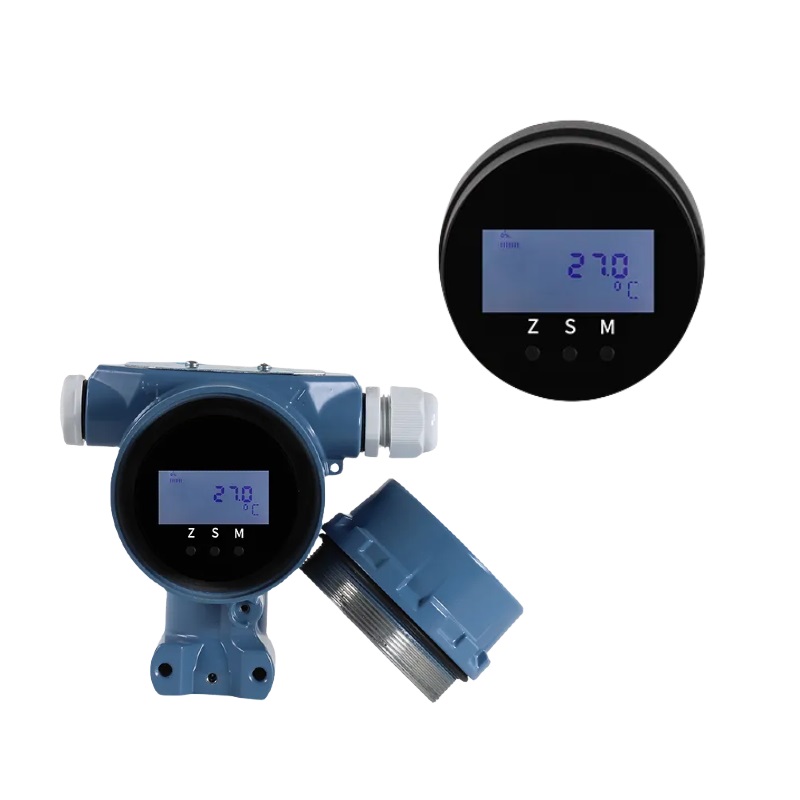

HART vs Modbus RS485 for Temperature Transmitters

Upgrading process instrumentation requires a careful balancing act. You must navigate legacy infrastructure constraints while satisfying the growing demand for richer digital data. Facilities often struggle to modernize aging systems. They want to avoid triggering massive capital expenditures. Choosing the right communication protocol solves this critical problem. The two dominant protocols for industrial field devices are HART (Highway Addressable Remote Transducer) and Modbus RTU over RS485.

Selecting the winning protocol is not just about data speed. It heavily dictates your physical wiring topology. It defines your initial integration expenses. It establishes your long-term maintenance strategy. You face a stark choice between analog reliability and digital density. Evaluating HART vs Modbus RS485 for temperature transmitters requires a deep understanding of your facility's physical layout.

This comprehensive guide breaks down the core technical and financial criteria. We explore system requirements and integration hurdles. By the end, you can confidently specify the right communication standard for your next instrument upgrade.

Key Takeaways

• Infrastructure rules the decision: HART allows facilities to superimpose digital diagnostics over existing analog 4-20mA wiring, saving massive recabling costs in brownfield projects.

• Topology dictates scalability: Modbus RS485 enables daisy-chained multidrop networks, drastically reducing cable runs for multi-point temperature monitoring (e.g., tank farms, silos).

• Speed vs. Reliability: Modbus offers near real-time data polling, whereas HART is limited to 1–2 digital updates per second.

• Integration realities: Modbus requires careful attention to physical layer realities (termination resistors, grounding), while HART requires compatible DCS/PLC analog input cards to unlock digital data.

Architectural Baseline: How These Protocols Handle Temperature Data

Understanding how these protocols transmit data builds the foundation for your choice. They approach signal transmission in completely different ways. Knowing these mechanics helps you prevent costly specification errors.

The HART Approach (Hybrid Analog/Digital): The HART protocol uses a highly proven hybrid analog and digital method. It utilizes Frequency Shift Keying (FSK) based on the Bell 202 standard. This technique overlays a low-level digital sine wave onto a standard 4-20mA analog loop. The primary trait here involves maintaining point-to-point analog reliability. The 4-20mA signal remains the primary control variable. Meanwhile, the FSK overlay provides secondary variable data. This includes sensor ambient temperature, calibration limits, and critical diagnostic status. The digital signal averages to zero, so it never disrupts the analog current reading.

The Modbus RS485 Approach (Pure Digital): Conversely, Modbus RS485 operates as a pure digital network. It utilizes a strict serial Master/Slave architecture over a differential physical layer. This approach eliminates the analog signal entirely. A master controller sends requests to slave devices sequentially. Slaves only respond when directly queried. This method transmits primary variables, secondary variables, and diagnostics as pure digital integer or floating-point registers. The differential signaling uses voltage differences across two wires to represent binary data. This provides excellent resistance to electrical interference in harsh factory environments.

Evaluating the HART Temperature Transmitter: When to Specify

When should you choose a HART temperature transmitter? The primary business driver centers around maximizing return on investment for existing infrastructure. This makes it the undisputed champion for brownfield applications and plant upgrades.

Core Advantages:

• Zero Rewiring: You can heavily leverage existing twisted-pair cabling. Legacy analog devices already use these copper wires. You skip the massive labor costs of pulling new conduit.

• Fail-Safe Analog: Hardware failures happen. If the digital signal fails, you do not lose control. The primary 4-20mA control loop remains active. It stays reliable for the PLC or DCS to safely run the process.

• Standardized Commissioning: The industry universally adopted this standard decades ago. Field technicians easily handle calibration and troubleshooting. They use standard handheld communicators like the Emerson Trex. Training requirements remain extremely low.

Implementation Limitations:

1. Slow Polling Rates: The protocol updates digitally at a sluggish pace. Expect one or two digital updates per second. It remains entirely unsuitable for highly dynamic processes requiring sub-second control response times.

2. Multidrop Limits: You can configure up to 15 or 63 multidrop devices depending on the protocol revision. However, doing so forces the analog signal to a fixed 4mA. This negates its hybrid advantage. It also creates terribly slow network speeds because the master must poll each device individually at low baud rates.

Evaluating the Modbus RS485 Temperature Transmitter: When to Specify

Your primary business driver shifts dramatically here. You specify a Modbus RS485 temperature transmitter for high-density sensor deployments. It dominates greenfield projects requiring high-speed data acquisition across vast physical areas.

Core Advantages:

• Cabling Efficiency: It uses a true daisy-chain topology. You can connect up to 32 transmitters on a single network segment. This drastically reduces wire costs. It minimizes conduit sizing. It also drastically reduces expensive I/O card requirements at the main controller.

• Data Velocity: The system supports significantly higher baud rates. Speeds typically range from 9600 to 115200 bps. This allows for rapid, near real-time polling of dozens of temperature points.

• Direct Digital Integration: Modern SCADA, RTUs, and edge gateways easily ingest the digital data. You completely bypass the need for specialized analog-to-digital converter cards. This streamlines your automation architecture.

Implementation Limitations:

1. Wiring Nuances: The physical layer demands precision engineering. It requires specific shielded twisted-pair cables featuring a characteristic impedance. You must install 120-ohm termination resistors at both ends of the bus to prevent signal reflection.

2. Power Distribution: Implementations usually require 4-wire setups. You need two dedicated wires for instrument power. You need another two for the communication signals. Specialized 2-wire power-over-data modules exist, but they remain less common and cost more.

Head-to-Head Decision Matrix: 4 Financial and Performance Criteria

Evaluating these protocols requires a detailed breakdown of capital costs and integration complexity. We must analyze how they perform over their operational lifecycle.

Cabling and Hardware Costs

The initial hardware layout presents the biggest divergence between the two standards. HART carries a high cost per node for brand new installations. You must pull individual home-run cables for every single device back to the control cabinet. You also need dedicated, expensive analog inputs on the control panel. Modbus RS485 presents a remarkably low cost per node for new installs. You utilize a shared bus architecture. You run one cable from the panel to the first device, then jump to the next. It only requires a single digital gateway or serial port at the controller.

PLC / DCS Integration Complexity

Integration demands highly influence engineering labor hours. HART integration demands specific I/O modules to read the superimposed digital data. These specialized analog modules carry a premium price tag compared to standard inputs. Modbus RS485 avoids this hardware premium. Most modern PLCs and RTUs natively support this protocol via an onboard RS485 port. However, it trades hardware cost for software engineering time. Automation engineers must perform manual register mapping. They must align memory addresses, bit scales, and floating-point byte orders.

Noise Immunity and Signal Integrity

Electrical noise plagues industrial environments. The standard 4-20mA temperature transmitter base is inherently highly immune to EMI and RFI. The current-based signal ignores most voltage noise. The digital FSK signal remains robust in typical setups. However, it becomes susceptible to high capacitance in very long cable runs. Modbus RS485 provides excellent common-mode noise rejection due to its differential signaling approach. Despite this strong physics foundation, it requires strict adherence to grounding practices. A poorly grounded shield wire acts as an antenna, destroying the digital communication.

Maintenance and Troubleshooting

Long-term maintenance strategies differ significantly. HART provides excellent fault isolation. Technicians benefit from point-to-point architecture. A single failed node or cut cable only affects one specific loop. The rest of the plant operates normally. Modbus RS485 shares the communication medium. A single short circuit, a flooded sensor housing, or a bad termination on the bus can take down the entire network segment. You lose visibility of all connected temperature sensors instantly. This demands careful physical layer design and strategic network segmentation.

Table: Technical and Operational Protocol Comparison

Deployment Risks and Field Engineering Realities

Field engineering always reveals hidden challenges not seen on spec sheets. We must address common pitfalls before they derail your automation project.

Modbus RS485 Pitfalls: Engineers often face frustrating physical layer issues. Grounding loops, missing termination resistors, and reversed polarities routinely cause intermittent communication dropouts. You must prioritize network isolation in industrial environments. Using opto-isolated repeaters helps protect the primary PLC from field electrical surges. Shield grounding remains a common mistake. You must ground the cable shield at one end only. Grounding both ends creates a massive ground loop. Furthermore, routing communication wires near noisy variable frequency drives will corrupt the digital data packets.

HART Pitfalls: This protocol presents unique electrical demands. You must maintain strict loop resistance requirements for the FSK signal to propagate. The standard mandates a minimum of 250 ohms of resistance in the loop for successful communication. Another major risk involves older, legacy control systems. Some legacy I/O cards aggressively filter out the FSK signal entirely. They treat the high-frequency pulse as electrical noise and scrub it. This strips your diagnostic data. It forces technicians to use local handheld communicators in the field instead of utilizing centralized asset management software.

Vendor Lock-in vs. Open Standards: Both communication methods function as open protocols. Anyone can implement them. However, proprietary Device Description (DD) files in the HART ecosystem can sometimes complicate integration. You might struggle to pair specific sensors with third-party asset management software without the exact firmware revision files. Modbus avoids this specific software headache by relying strictly on open register maps. You simply need the manufacturer's manual to decode the integers. It provides raw data without requiring complex software handshakes.

Conclusion: Formulating Your Shortlist

Selecting the perfect instrument communication strategy heavily shapes your operational efficiency. Let us review the summary logic to guide your final specification.

Choose a hybrid analog-digital device if you are actively replacing legacy hardware. It makes complete financial sense when you rely heavily on existing 4-20mA copper infrastructure. It also works best when you prioritize individual loop reliability above pure data speed. A single wire cut should not blind your entire reactor.

Choose a pure digital RS485 device if you are building a new facility from the ground up. It thrives when monitoring multiple points in a tight physical cluster. Multipoint reactor profiling and tank farm monitoring serve as perfect examples. Specify this protocol when you need cost-effective digital integration and fast polling rates.

Actionable Next Steps: We highly recommend mapping out the physical distance of your entire sensor network first. Calculate the total I/O point hardware costs across both architectures. Include the price of wire, conduit, and PLC input cards. Always verify your existing PLC or DCS compatibility before procuring hardware. A little upfront planning prevents massive integration headaches later.

FAQ

Q: Can I convert a 4-20mA temperature transmitter to Modbus RS485?

A: Yes, via an external signal conditioner or gateway. This hardware reads the analog or HART signal directly. It then converts that raw data into Modbus RTU registers. This allows you to integrate legacy point-to-point sensors into a modern multidrop digital network without replacing the physical instruments.

Q: What is the maximum cable distance for HART vs Modbus RS485?

A: HART can typically run up to 3,000 meters depending on total cable capacitance. Modbus RS485 is generally limited to 1,200 meters (roughly 4,000 feet) due to signal degradation over long distances. If your facility requires greater reach, you must install active signal repeaters on the bus.

Q: Does WirelessHART replace Modbus?

A: No. WirelessHART replaces physical wiring for hard-to-reach areas but requires a gateway. It functions as a secure wireless transport layer. Interestingly, the central WirelessHART gateway often outputs Modbus TCP or RTU to feed the aggregated sensor data into the main control system.
