Flow Meter Primary Classifications And Structural Designs

Introduction

Why do industrial flow meters use different internal designs? Each structure serves specific measurement needs and operating conditions. This guide explores Flow Meter classifications, working principles, structural differences, and installation options to help you choose suitable equipment.

What Are the Main Classifications of Flow Meters?

Flow meters can be classified by their measurement principles. This approach explains how each instrument detects fluid movement. It also reveals why different models use different internal structures. Mechanical flow meters rely on moving components. Electromagnetic and ultrasonic models use non-mechanical sensing methods. Differential pressure and vortex meters measure flow through changes in fluid behavior. Thermal mass and Coriolis meters use heat transfer or fluid dynamics.

Mechanical Flow Meters

Mechanical flow meters use physical movement to measure fluid flow. Turbine and positive displacement meters are common examples. A turbine flow meter contains a rotor inside its measuring tube. Moving fluid causes the rotor to spin. A sensor detects the rotation and converts it into an electrical signal. The signal processor then calculates the flow rate. Rotor balance, bearing quality, and sensor position influence measurement stability.

Positive displacement flow meters use a different approach. Their measuring chambers capture and release known fluid volumes. Internal gears, rotors, or other displacement elements create repeated measuring cycles. A counter records these cycles and calculates the transferred volume. This design suits certain fuel and oil applications. It can also handle some fluids where viscosity supports stable chamber operation.

Electromagnetic and Ultrasonic Flow Meters

Electromagnetic flow meters measure conductive liquids through electromagnetic induction. Their main structure includes a measuring tube, excitation coils, electrodes, liner, and converter. The magnetic field interacts with moving conductive liquid. Electrodes detect the resulting voltage. The converter processes this signal and calculates flow rate. These meters have no moving measuring parts. They are commonly used for water, wastewater, and compatible chemical liquids.

Ultrasonic flow meters use sound waves to determine fluid velocity. Transit-time models compare ultrasonic signals traveling with and against the flow. Doppler models analyze frequency changes caused by particles or bubbles. Their structures include ultrasonic transducers and signal processing electronics. Some designs mount directly inside pipelines. Others attach externally to the pipe surface.

Differential Pressure and Vortex Flow Meters

Differential pressure flow meters measure pressure changes across a restriction. Common primary elements include orifice plates, venturi tubes, and flow nozzles. Pressure sensors measure the upstream and downstream pressure difference. A transmitter then converts this information into a flow signal. The system requires suitable pressure connections and installation conditions.

Vortex flow meters use a bluff body placed inside the flow passage. Fluid passing the obstruction creates alternating vortices. A sensor detects the resulting frequency. The electronics calculate flow rate from this signal. These meters are used in suitable liquid, gas, and steam applications. Their performance depends on flow conditions and installation quality.

Thermal Mass and Coriolis Flow Meters

Thermal mass flow meters use heat transfer to measure gas mass flow. Their sensing elements detect temperature changes caused by moving gas. The electronics convert these changes into a mass flow reading. They are used for compressed air, nitrogen, natural gas, and other compatible gases.

Coriolis flow meters use vibrating measuring tubes. Fluid movement changes the vibration response through Coriolis forces. Sensors detect tube movement and calculate mass flow. Some models also measure fluid density. Their construction is more complex than many basic flow meters. They are useful when direct mass measurement is important.

Tip： When comparing flow meter types, start with the measuring principle. Then check whether its structure suits the actual fluid and process.

How Do Different Flow Meter Structures Work?

Understanding internal components makes flow meter classification more practical. Two instruments may measure the same medium but use different structures. These differences influence signal generation, maintenance, and installation. Turbine and positive displacement meters provide useful examples. Both measure liquid flow, but their internal mechanisms work differently.

Turbine Flow Meter Internal Structure

A turbine flow meter usually contains a measuring tube, rotor, bearings, sensor, and signal processor. Fluid enters the measuring tube and pushes the rotor. The rotor spins at a speed related to fluid velocity. A pickup sensor detects each rotation and generates electrical pulses. The signal processor converts these pulses into flow readings.

Rotor design plays an important role in measurement performance. Poor balance may cause vibration and unstable signals. Bearing materials also affect friction and service life. Some industrial designs use tungsten carbide, ruby, or ceramic bearings. These materials serve different operating conditions and wear requirements.

The sensor can use magnetoresistive or inductive detection. The signal processor may connect to a local display or remote instrument. Some designs also support different pipeline connections. These include threaded, flanged, and other connection arrangements. One referenced turbine design offers integral and remote configurations. Its published options also include different bearing and body materials. These features show how structural choices support different process requirements.

Positive Displacement Flow Meter Measuring Chamber

A positive displacement flow meter measures fluid through repeated volume capture. Its main structure includes a measuring chamber and displacement elements. Depending on the design, these elements may use gears, rotors, or other mechanical parts. Fluid enters the chamber and moves the internal components. Each cycle represents a defined fluid volume. A mechanical or electronic counter records the cycles.

This structure differs from a turbine meter. A turbine meter calculates flow from rotor speed. A positive displacement meter counts repeated volume movements. It can be useful for fuel, diesel, and oil transfer. Some models also support liquids across a broad viscosity range. However, the actual range depends on the product design.

A referenced digital counter design illustrates several practical features. It includes a built-in totalizer and an adjustment mechanism. Its listed body material options include aluminum, cast iron, and stainless steel. Connection options include flange and threaded arrangements. The measuring chamber and displacement mechanism remain the core components. The digital counter only displays or records the measured volume. It does not change the underlying mechanical measurement principle.

Electromagnetic Flow Meter Sensor Structure

An electromagnetic flow meter has a measuring tube, liner, electrodes, excitation coils, and converter. The liner separates the conductive liquid from the metal body. The coils generate a magnetic field across the measuring tube. As conductive liquid moves through this field, a voltage develops across the electrodes.

The electrode signal is usually small. The converter amplifies and processes it. It then calculates flow velocity and volumetric flow rate. Because the measuring tube has no rotor, there are fewer moving parts. This design can reduce mechanical wear and obstruction. However, the liquid must have sufficient electrical conductivity.

Electrode and liner materials must match the process medium. Stainless steel, Hastelloy, PTFE, and PFA are examples of material options. Their chemical resistance and temperature limits differ. Users should check concentration, temperature, pressure, and cleaning conditions before selecting them. The converter may also provide analog or digital outputs. These outputs support connection to monitoring and control systems.

Ultrasonic and Differential Pressure Sensor Configurations

Ultrasonic flow meters use transducers to send and receive sound signals. Transit-time designs measure the time difference between upstream and downstream signals. Doppler designs detect frequency changes caused by particles or gas bubbles. The transducers may be installed inside the pipe or mounted externally. Clamp-on designs avoid direct contact with the measured fluid.

Differential pressure meters use another structural arrangement. A primary element creates a pressure difference inside the pipeline. Pressure taps connect the upstream and downstream sides to a transmitter. The transmitter measures the difference and calculates flow. Orifice plates, venturi tubes, and flow nozzles are common primary elements.

These configurations have different installation demands. Ultrasonic meters need suitable acoustic coupling and pipe conditions. Differential pressure systems need correct pressure connections and impulse lines. Both require proper installation to support reliable readings.

Tip： A digital display does not define the measurement principle. Always identify the sensor technology before comparing flow meter structures.

How Are Flow Meters Classified by Installation Design?

Installation design describes how a flow meter connects to a pipeline. It does not necessarily describe its measurement principle. A turbine meter, for example, may use an inline structure. An ultrasonic meter may use clamp-on or inline transducers. Choosing the correct installation method helps reduce modification costs. It also supports reliable measurement and easier maintenance.

Inline Flow Meter Structures

An inline flow meter is installed directly into the pipeline. The measured fluid passes through its internal measuring section. The instrument may use threaded, flanged, or sanitary connections. Its body often forms part of the process pipeline. This arrangement provides a defined measurement passage and stable sensor positioning.

Inline designs are common in water treatment, fuel transfer, chemical processing, and production systems. They suit applications where the pipeline can be opened during installation. However, engineers must consider pipe diameter and available installation space. They should also check flow direction and required straight pipe lengths.

The internal structure depends on the measuring principle. A turbine model contains a rotor and pickup sensor. An electromagnetic model uses electrodes and excitation coils. A positive displacement model contains a measuring chamber. Therefore, inline installation does not indicate one specific technology.

Insertion Flow Meter Structures

Insertion flow meters use a probe that enters the pipeline. The probe reaches a selected position inside the flowing medium. Its sensor measures local flow conditions. The instrument then uses its measurement method and calibration data to determine flow.

This structure can suit large pipelines. It may reduce installation costs compared with a full-bore meter. Some designs allow installation through a mounting fitting. Others require pipeline shutdown or a suitable hot-tap procedure. The correct method depends on pressure conditions and equipment design.

Insertion depth and sensor orientation are important. Incorrect positioning may cause readings that do not represent the flow profile. Engineers should consider pipe diameter, velocity distribution, and upstream disturbances. They should also confirm whether the sensor can be removed safely for maintenance.

Clamp-On Flow Meter Structures

Clamp-on flow meters mount sensors on the outside of a pipe. Ultrasonic signals pass through the pipe wall and the fluid. The instrument analyzes the signals to calculate flow velocity. This approach avoids cutting the pipeline or exposing the sensor to the process medium.

Clamp-on designs can be useful for temporary measurement and retrofit projects. They may also suit pipelines where shutdown is difficult. However, the pipe material and wall condition affect signal transmission. Lining, corrosion, deposits, and pipe geometry can influence measurement quality.

The installation surface must be prepared correctly. Sensor spacing and alignment should follow manufacturer instructions. Acoustic coupling material may also be required. Clamp-on equipment is not automatically suitable for every pipe. Users should confirm material compatibility and signal conditions before purchase.

Tip： For retrofit projects, compare installation downtime and pipeline modification costs before choosing inline, insertion, or clamp-on designs.

What Is the Difference Between Integral and Remote Flow Meter Designs?

Flow meters can also be classified by display and converter arrangements. Integral and remote designs are two common configurations. Their main difference is the position of the electronic components. This choice affects installation flexibility, accessibility, and maintenance. It does not necessarily change the basic measurement principle.

Integral Display Flow Meter Structure

An integral flow meter combines the sensor, converter, and display into one assembly. The measuring section detects fluid movement. The converter processes the signal and calculates flow data. The display presents the results near the pipeline.

This design offers a compact installation arrangement. Operators can check readings directly at the measurement point. It also reduces the need for separate signal cables between the sensor and converter. Integral configurations are suitable when the installation environment allows local access.

However, the surrounding environment must meet electronic component requirements. High temperatures, strong vibration, and difficult access may affect installation decisions. Engineers should check enclosure protection and ambient temperature limits. They should also consider whether operators can read the display safely.

Remote Display Flow Meter Structure

A remote flow meter separates the sensor from its converter or display. A connecting cable transfers signals between these components. This arrangement allows the sensor to remain near the pipeline. The display can be installed in a more accessible location.

Remote designs are useful when pipelines operate in difficult environments. For example, the sensor may be installed in a wet or restricted area. Operators can place the display in a protected control room. This makes routine monitoring more convenient.

Cable length and signal compatibility require attention. Excessive cable length may affect signal quality in certain designs. Cable routing should also avoid strong electrical interference. Users must follow the manufacturer's wiring and grounding requirements.

How to Choose Between Integral and Remote Designs

The correct configuration depends on the installation environment. Integral designs suit accessible locations with suitable ambient conditions. Remote designs provide greater flexibility when the measuring point is difficult to reach. Both arrangements can support industrial process monitoring.

Before making a decision, evaluate these factors:

The measurement principle should remain the first selection priority. Display configuration comes afterward. A convenient display cannot compensate for an unsuitable sensor or measuring range.

How Do Flow Meter Structures Affect Measurement Performance?

Structural design directly influences measurement quality. Internal components determine how fluid movement becomes a measurable signal. Materials influence compatibility and durability. Installation geometry affects flow conditions. Understanding these factors helps engineers evaluate equipment beyond its appearance.

Internal Components and Measurement Accuracy

Internal component design affects accuracy and repeatability. In turbine meters, rotor balance and bearing quality influence rotational stability. Sensor positioning affects pulse detection. A poorly designed rotor may create vibration or inconsistent signals.

Positive displacement meters depend on measuring chamber geometry. Internal clearances influence how fluid moves through the chamber. Displacement elements must operate consistently. Excessive wear or unsuitable fluid conditions may affect measurement performance.

Electromagnetic meters depend on stable magnetic fields and electrode signals. Electrode condition and liner integrity are important. Ultrasonic meters depend on reliable acoustic transmission. Transducer positioning and signal processing also matter.

Signal processing connects the sensing structure to the final reading. It converts raw signals into usable flow information. Configuration errors may affect displayed values. Therefore, buyers should evaluate sensor construction and electronics together.

Structural Materials and Fluid Compatibility

Material selection determines whether a flow meter suits the measured medium. Different applications expose equipment to different chemical and mechanical conditions. Stainless steel is common in industrial meter bodies. Aluminum is used in certain lightweight designs. Bronze and specialized alloys serve selected applications.

Wetted components need particular attention. These include measuring tubes, electrodes, liners, seals, and internal displacement elements. A suitable body material does not guarantee complete chemical compatibility. Every component contacting the fluid must be considered.

For example, an aluminum positive displacement meter may suit certain fuel applications. However, aggressive chemicals may require another construction. Electromagnetic meters may use PTFE or PFA liners for suitable corrosive services. The final selection must follow chemical compatibility data.

Pressure and temperature ratings are equally important. Materials can respond differently under changing conditions. Seals may soften, harden, or lose sealing performance. Engineers should verify all wetted materials against actual process specifications.

Pressure Loss, Flow Resistance, and Maintenance

Internal structures can create different levels of flow resistance. Turbine meters introduce a rotor into the flow passage. Positive displacement meters use internal measuring chambers. These structures may create pressure losses depending on their design and operating conditions.

Electromagnetic meters generally have an unobstructed measuring passage. This can reduce additional flow resistance. However, liner deposits and unsuitable pipe arrangements may still affect performance. Differential pressure meters intentionally create a restriction to generate a measurable pressure difference.

Maintenance requirements also vary. Turbine meters need inspection of rotors and bearings. Positive displacement meters require attention to displacement components. Electromagnetic meters need electrode and liner checks. Ultrasonic meters require suitable transducer positioning and signal verification.

Tip： Ask manufacturers for pressure-loss information and maintenance requirements. These details help estimate long-term operating costs.

How to Identify the Right Flow Meter Classification for Your Application?

Selecting a flow meter requires a clear understanding of process conditions. Buyers should not choose equipment based only on price or appearance. The measuring principle, sensor structure, and installation method must work together. A structured evaluation reduces compatibility problems and improves measurement reliability.

Select the Measurement Principle Based on Fluid Type

Start by identifying the measured medium. Conductive liquids may suit electromagnetic flow meters. Clean, low-viscosity liquids may suit turbine designs. Certain fuel and oil applications may benefit from positive displacement technology. Gas applications may require thermal mass or other suitable measurement principles.

Fluid properties also matter. Consider conductivity, viscosity, density, temperature, and contamination. Suspended particles may affect mechanical components. Gas composition may influence thermal mass measurements. Corrosive liquids require suitable wetted materials.

The required measurement output is another consideration. Some processes need volumetric flow. Others require mass flow or totalized volume. These requirements influence the measurement principle and electronics.

Match Structural Design to Pipeline Conditions

Pipeline conditions determine which installation structure is practical. Engineers should confirm nominal diameter and available mounting space. They should also review pressure, temperature, and flow velocity. Large pipelines may benefit from suitable insertion designs. Retrofit projects may consider clamp-on ultrasonic equipment.

Inline meters offer direct pipeline integration. They may require pipeline cutting and shutdown during installation. Insertion designs can reduce some modification requirements. Clamp-on designs avoid direct fluid contact. However, their performance depends on pipe material and acoustic conditions.

Display position also matters. Integral designs provide local readings. Remote designs allow flexible display placement. The selected arrangement should suit operator access and environmental conditions.

Check Technical Specifications and Output Requirements

Technical specifications provide the final selection reference. Buyers should compare the following parameters before confirming a model:

• Measuring medium and measurement principle.

• Minimum, normal, and maximum flow rates.

• Pipeline diameter and connection type.

• Operating pressure and temperature.

• Accuracy and repeatability requirements.

• Wetted materials and protection rating.

• Power supply and electrical output.

• Communication protocols and control system compatibility.

Output requirements deserve special attention. Common industrial options include 4–20 mA, pulse, relay, and RS485 communication. The correct choice depends on the control system. Buyers should also confirm whether the instrument supports local display or remote monitoring.

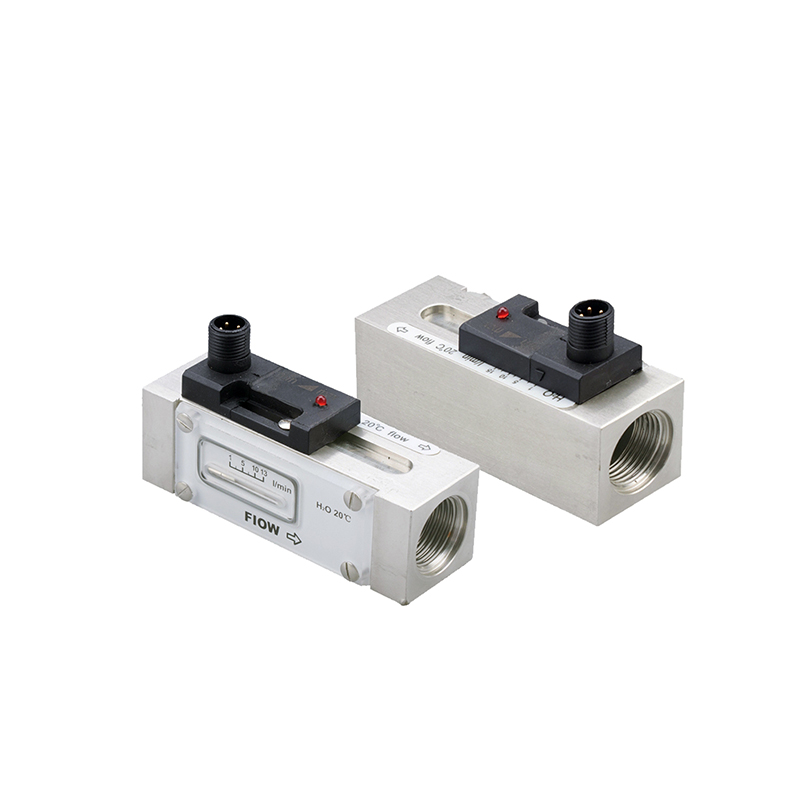

For applications requiring flow condition monitoring rather than continuous flow measurement, flow switches may also be relevant. HIGHJOIN offers different flow monitoring products. The HFM500 Thermal Flow Switch supports PNP, NPN, and relay output configurations. It is designed for flow detection and switching applications. It should not be confused with a continuous flow meter.

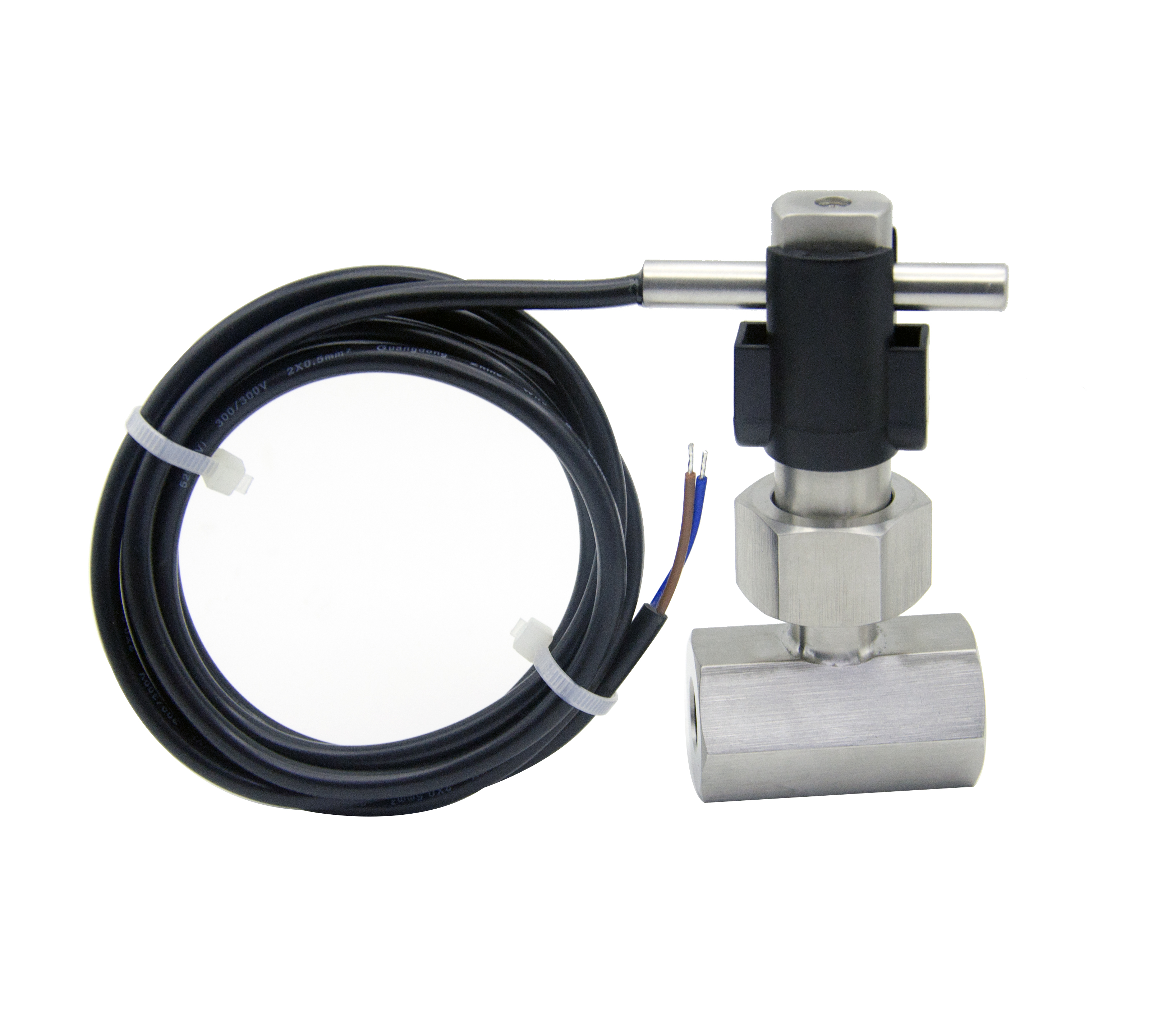

The FS50 Stainless Steel Paddle Flow Switch provides another option for water flow monitoring. Its paddle structure detects flow conditions inside the pipeline. It can support equipment protection and flow-related control functions. However, it does not replace a flow meter when continuous flow-rate measurement is required.

Buyers can explore the HIGHJOIN Flow Meter and Flow Monitoring Product Range to review available equipment categories. Comparing measurement functions before purchasing helps avoid selecting a switch for a metering application.

Tip： A flow meter measures flow rate or volume. A flow switch detects whether flow reaches a defined operating condition. Their functions are different.

Conclusion

Flow meters use different principles and structural designs. Their performance depends on fluid properties, installation, and material compatibility. HIGHJOIN offers flow meters and flow switches for industrial monitoring. Its product range supports flexible configurations, reliable detection, and efficient process control.

FAQ

Q: What are the main flow meter classifications?

A: Common flow meter types include turbine, electromagnetic, ultrasonic, vortex, and thermal mass meters.

Q: How does a turbine flow meter work?

A: A rotor spins as fluid passes through, generating signals for flow measurement.

Q: What is the difference between turbine and positive displacement flow meters?

A: Turbine meters measure rotor speed, while positive displacement meters capture fixed fluid volumes.

Q: What are inline and clamp-on flow meters?

A: Inline meters enter the pipeline, while clamp-on meters mount externally.

Q: How do you choose the right flow meter design?

A: Consider fluid properties, pipe size, pressure, temperature, accuracy, and installation conditions.
