How To Calibrate Pressure Gauge

Ever wondered if your pressure gauge can mislead you? Accurate readings are vital for safety and efficiency. Over time, gauges drift due to wear and environment. In this article, you will learn how to calibrate a pressure gauge correctly, step by step, for reliable results.

Understanding Pressure Gauge Calibration

What Calibration Means for Pressure Gauges

Calibration ensures that a pressure gauge accurately reflects the actual pressure applied. By comparing the gauge to a known standard, we restore its measurement accuracy. Regular calibration also maintains consistency across multiple gauges, preventing errors that could disrupt operations. It is not merely a procedural step; it is a critical part of maintaining process integrity.

Common Causes of Gauge Inaccuracy

Several factors can contribute to inaccurate pressure readings. Mechanical wear and tear gradually affect moving parts, especially in Bourdon tube and diaphragm gauges. Environmental conditions like temperature fluctuations, humidity, and vibration can also distort readings. Contamination, including dirt, moisture, or grease, may impair the gauge's mechanisms, while improper handling can result in calibration drift or sudden failure.

Types of Pressure Gauges That Require Calibration

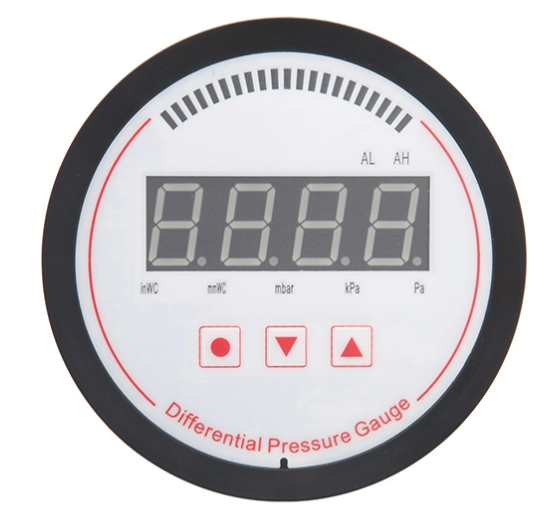

Both mechanical and digital pressure gauges need periodic calibration, though the process differs slightly. Mechanical gauges, such as Bourdon tube or diaphragm types, often require manual adjustment and thorough inspection. Digital gauges leverage electronic sensors, requiring specialized procedures for adjustment and software-based verification. Understanding the differences ensures accurate calibration and prevents unnecessary errors.

Essential Tools and Equipment for Calibration

Primary and Secondary Standards

Primary standards, such as deadweight testers, offer the highest precision and serve as references for secondary instruments. Secondary standards are used for routine calibration, ensuring traceability and consistent results. Selecting the correct standard depends on the gauge's required accuracy and operational application.

Pressure Sources

Hand pumps, pneumatic calibrators, and hydraulic sources provide the necessary pressure to test the gauge. The choice depends on pressure range, medium, and safety considerations. For example, high-pressure systems often require hydraulic sources, while low-pressure gauges can be calibrated using air or gas safely.

Fittings, Adapters, and Accessories

Proper fittings and adapters prevent leaks and ensure accurate pressure transfer. Even minor connection errors can introduce significant measurement discrepancies. Accessories, including connectors, hoses, and mounting fixtures, must be compatible and free of contamination.

Measurement Recording Tools

Maintaining precise records is essential for traceability and compliance. Calibration logs, whether digital or analog, document the readings, adjustments, and any anomalies observed during calibration. Digital tools can automate logging, improve accuracy, and streamline audits.

Step-by-Step Pressure Gauge Calibration Process

Pre-Calibration Preparation

Begin by inspecting and cleaning the gauge. Remove debris, oil, or moisture that may interfere with readings. Mechanical gauges benefit from exercising the needle through multiple pressure cycles to reduce friction. Ensuring the gauge is ready prevents skewed results during calibration.

Zero Adjustment and Initial Setup

Before applying pressure, set the gauge to zero according to manufacturer guidelines. Align the calibration device correctly to avoid positional errors. This step is critical for mechanical gauges, which can show offset readings if the zero point is misaligned.

Applying Test Pressures

Select multiple pressure points across the gauge's range, including low, medium, and high pressures. Slowly apply pressure to mitigate the adiabatic effect, where rapid pressure changes alter fluid density, impacting accuracy.

Table 1: Example Pressure Point Settings

Observing and Adjusting Readings

Compare the gauge readings with the reference standard. Mechanical gauges may require manual adjustment, while digital gauges can be recalibrated using software or digital controls. Make adjustments at each test point to maintain accuracy across the full range.

Repeating for Accuracy Verification

Repeat the calibration cycle to ensure repeatability and consistency. Evaluate hysteresis by comparing readings during increasing and decreasing pressure cycles. Proper repetition verifies the reliability of the calibration.

Final Documentation and Safety Checks

After adjustments, log all readings, discrepancies, and corrections. Disconnect the calibration equipment and safely store the gauge. Documentation ensures compliance and provides a reference for future calibration cycles.

Factors Affecting Calibration Accuracy

Accuracy Class and Tolerance Levels

Pressure gauges are assigned specific accuracy classes that define the maximum permissible error for a given measurement range. Understanding these tolerance limits is essential because it allows technicians to determine acceptable deviations during calibration, ensuring that each gauge meets operational requirements and maintains reliable performance across its intended range.

Environmental Considerations

Calibration accuracy can be significantly influenced by environmental factors such as temperature fluctuations, humidity, vibration, and atmospheric pressure. Performing calibration in a controlled environment minimizes these external impacts, ensuring consistent readings. Documenting environmental conditions during calibration helps interpret variations and maintain repeatable, high-quality results.

Pressure Media Effects

The type of pressure medium used during calibration directly affects gauge performance. Air or gas is typically suitable for low-pressure gauges, while liquids are preferred for higher pressure ranges to ensure stability. Using clean, uncontaminated media prevents sensor or mechanical damage, which could otherwise compromise the integrity of readings and calibration outcomes.

Height Differences and Hydrostatic Pressure

When the pressure gauge and calibration source are vertically separated, hydrostatic pressure can introduce measurement errors, especially in liquid-filled systems. Proper compensation for height differences during calibration is critical, as even minor misalignment can produce measurable deviations. Accounting for these effects ensures precision and improves the overall reliability of calibration data.

Ensuring Reliability in Calibration

Leak Testing Before Calibration

Leak detection is a critical step to guarantee accurate calibration. Any leakage in the system can create erroneous pressure readings. Pressurize the system and observe for pressure drops carefully. Ensuring a leak-free setup provides confidence that subsequent calibration results reflect the true gauge performance rather than system errors.

Adiabatic Effect Mitigation

Rapid changes in pressure can alter the temperature and density of the media inside the gauge, causing inaccurate readings. Gradually applying pressure and allowing stabilization between increments mitigates the adiabatic effect. This approach is particularly important for sensitive mechanical and digital gauges that respond quickly to pressure fluctuations.

Gauge Mounting and Orientation

The physical orientation of a gauge can affect its readings, especially for mechanical types such as Bourdon tube or diaphragm gauges. Calibrating the gauge in the same position as its operational setup ensures consistency. Following manufacturer recommendations and mounting guidelines further prevents errors caused by misalignment or gravitational effects on the gauge mechanism.

Repeatability and Hysteresis Testing

Repeatability is a key measure of calibration reliability, reflecting the gauge’s ability to provide consistent readings over multiple cycles. Hysteresis testing evaluates the difference in readings during increasing and decreasing pressure sequences. Addressing mechanical friction and compensating for hysteresis improves accuracy and ensures the gauge delivers dependable performance across its entire measurement range.

Calibration Frequency and Scheduling

Determining Calibration Intervals

The frequency of calibration depends on factors such as operational usage, environmental exposure, and application criticality. While annual calibration is a general recommendation, high-risk industrial applications may require more frequent checks. Establishing a proactive calibration schedule prevents measurement drift, ensures safety, and reduces the risk of costly operational errors.

High-Risk vs Low-Risk Applications

Critical processes in manufacturing, chemical, or laboratory environments demand tighter calibration schedules to maintain safety and compliance. In contrast, gauges used in low-risk applications can tolerate longer intervals between calibrations without affecting performance. Prioritizing calibration based on risk ensures resources are focused where accuracy is most critical.

In-House vs Outsourced Calibration

In-house calibration offers direct control and quick access to equipment but requires investment in trained personnel, equipment, and controlled environments. Outsourcing calibration provides higher traceability, access to certified laboratories, and adherence to international standards. Companies must evaluate cost, reliability, and compliance when choosing between internal or external calibration services.

Maintaining Metrological Traceability

Traceability ensures that calibration results are linked to recognized national or international standards. Documenting calibration procedures, results, and adjustments establishes credibility, supports regulatory compliance, and facilitates audits. Maintaining this traceable chain guarantees that pressure measurements are accurate, repeatable, and accepted across industrial and laboratory applications.

Advanced Tips for Optimizing Pressure Gauge Calibration

Selecting the Right Calibration Tools

Choosing appropriate calibration tools is essential for maintaining gauge accuracy. The tool’s precision must match or exceed the gauge’s accuracy class. Selecting the correct instruments prevents damage to delicate mechanisms and ensures that each calibration yields reliable, repeatable results, whether for mechanical or digital gauges.

Minimizing Calibration Errors

Human and environmental factors can introduce errors during calibration. Standardizing procedures, providing thorough operator training, and ensuring clean, leak-free setups reduce inaccuracies. Monitoring ambient conditions and following structured protocols help maintain consistency, improving confidence in the pressure gauge’s readings and long-term reliability.

Leveraging Digital Data Logging

Digital logging systems enhance calibration efficiency by automatically recording readings in real time. This approach reduces transcription errors and facilitates audits by maintaining an accurate, organized record of every calibration cycle. Leveraging digital tools also supports trend analysis and continuous monitoring of gauge performance over time.

Continuous Improvement Practices

Regular analysis of calibration records helps identify patterns or recurring deviations. Continuous improvement involves adjusting calibration procedures, optimizing tools, and refining environmental controls to enhance measurement accuracy. Over time, this proactive approach reduces errors, increases operational efficiency, and extends the life of both mechanical and digital pressure gauges.

Conclusion

Accurate pressure gauge calibration ensures safety and efficiency. Following proper calibration steps keeps mechanical and digital gauges precise. Understanding accuracy factors and maintaining records prevents errors and extends gauge life. Nanjing Hangjia Electronic Technology Co.,Ltd. offers reliable pressure sensors that deliver consistent, high-precision readings, enhancing operational performance and process control.

FAQ

Q: What is a pressure gauge?

A: A pressure gauge measures fluid or gas pressure, providing accurate readings for safe and efficient system operation. It helps monitor performance and prevent failures.

Q: Why is pressure gauge calibration important?

A: Calibration ensures the gauge provides precise readings, prevents errors, and maintains reliability. Proper calibration supports safety, regulatory compliance, and operational efficiency.

Q: How do I perform a pressure gauge calibration procedure?

A: Follow structured pressure gauge calibration steps. Connect the gauge to a standard, apply test pressures gradually, adjust readings, and document results to ensure accuracy across the range.

Q: Can I calibrate a mechanical gauge myself?

A: Yes, knowing how to calibrate mechanical pressure gauge is essential. Use correct fittings, apply multiple pressure points, and account for hysteresis and friction for reliable results.

Q: Is there a guide for digital gauges?

A: The digital pressure gauge calibration guide provides step-by-step instructions for applying test pressures, observing readings, adjusting digitally, and logging data to maintain accuracy and traceability.

Q: How often should a pressure gauge be calibrated?

A: Typically, gauges are calibrated annually. High-risk or critical applications may require more frequent checks. Regular calibration preserves precision and extends gauge lifespan.
